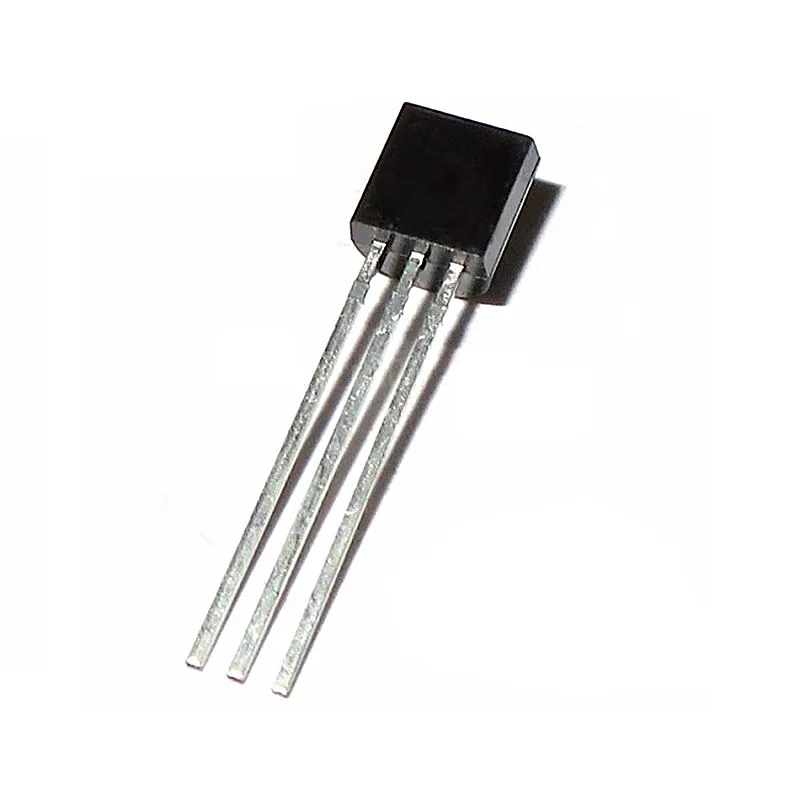

J112 JFET N-Channel Chopper Transistor 35V 50mA TO-92 Package
J112 JFET N-Channel Chopper Transistor 35V 50mA TO-92 Package
This device is designed for low level analog switching, sample and hold circuits and chopper stabilized amplifiers. It's Source & Drain are interchangeable. Features:- Low Error Voltage High-Speed Analog Circuit Performance Negligible “Off-Error,” Excellent Accuracy Good Frequency Response, Low Glit
+ 18% GST (added at checkout)
In stock — 1111 units ready
- Low Error Voltage
- High-Speed Analog Circuit Performance
- Negligible “Off-Error,” Excellent Accuracy
- Good Frequency Response, Low Glitches
- Eliminates Additional Buffering
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This device is designed for low level analog switching, sample and hold circuits and chopper stabilized amplifiers. It's Source & Drain are interchangeable. Features:- Low Error Voltage High-Speed Analog Circuit Performance Negligible “Off-Error,” Excellent Accuracy Good Frequency Response, Low Glitches Eliminates Additional Buffering Detailed Specifications:- Transistor Polarity N-Channel Gate-Source Voltage (VGSS) 35V Drain-Source Current (IDSS) 50mA Drain-Source Resistance (Rds On) 50Ohms Input Capacitance (Ciss) 2pF Gate to Source Forward Voltage (VGS(F)) 0.7V Gate to Source Cutoff Voltage (VGS(OFF)) 5V Reverse Transfer Capacitance (Crss) 5pF Operating Temperature Range -55 - 125°C Power Dissipation (PD) 625mW Related Documents:- J112 JFET Datasheet
