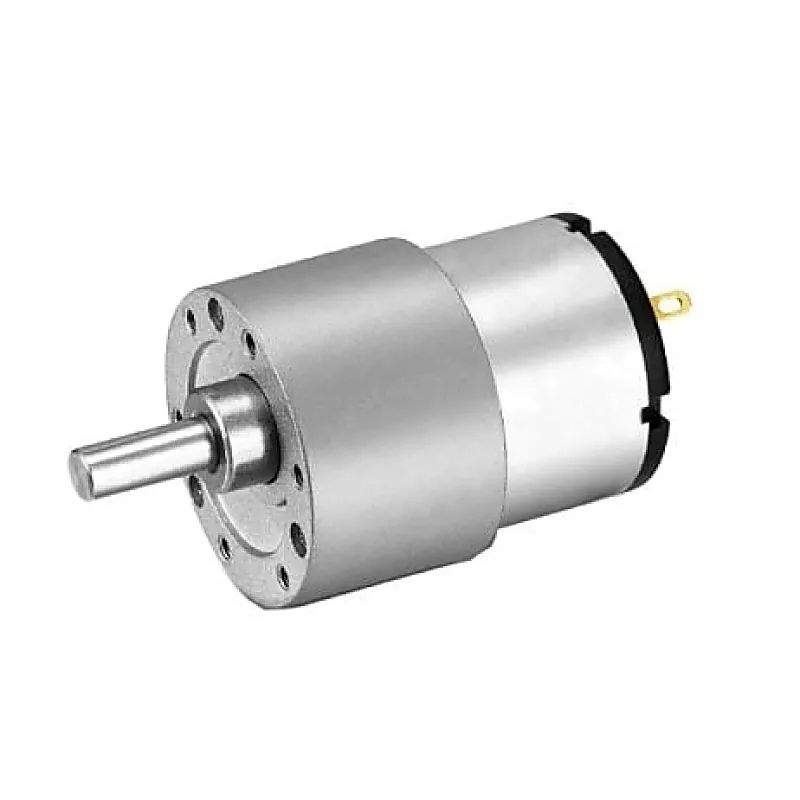

JGB37-520 DC12V 60RPM/MIN Miniature Forward and Reverse Brushed DC Speed Reducer Motor

DC motor is equipped with a brushed motor, which makes the motor more stable and durable. This gearbox motor has high performance and excellent electrical conductivity, which can improve the service life of the product 12V Reduction motor for small smart device parts, like a Full vending machine, small lock, smart toy, etc. This large and powerful JGB37-520 DC gear motor is available in a wide range of operating voltages and speeds, suitable for almost any project. Applications: Vending machines panoramic cameras Slot machines Money detectors Coin refund devices Automatic doors Peritoneal machines Toys, etc. Features: Small gear motor with low speed, low noise, and high torque. The geared motor adopts pure copper winding, which has the characteristics of low heat generation and low loss. The metal gearbox has the characteristics of wear resistance and rust resistance, and the motor has a long service life. The high-torque gear motor has a thickened magnet with a strong magnetic field and strong anti-interference. Specification: Model: JGB37-520-7 Rated Voltage: 12V Revolving Speed: 60RPM Rated Torque: 0.15 kg. cm Stall Torque: 0.6 kg. cm Rated Current: 100 mA Stall Current: 1.2A Total Length(LxWxH) : 77x37x37mm Gear Material: Full Metal Shaft Size : 6 x 15mm(D*L) Gearbox length(L) :27mm Shaft Type : D Type Package Includes: 1 x JGB37-520 DC12V 60RPM/MIN Miniature Forward and Reverse Brushed DC Speed Reducer Motor
