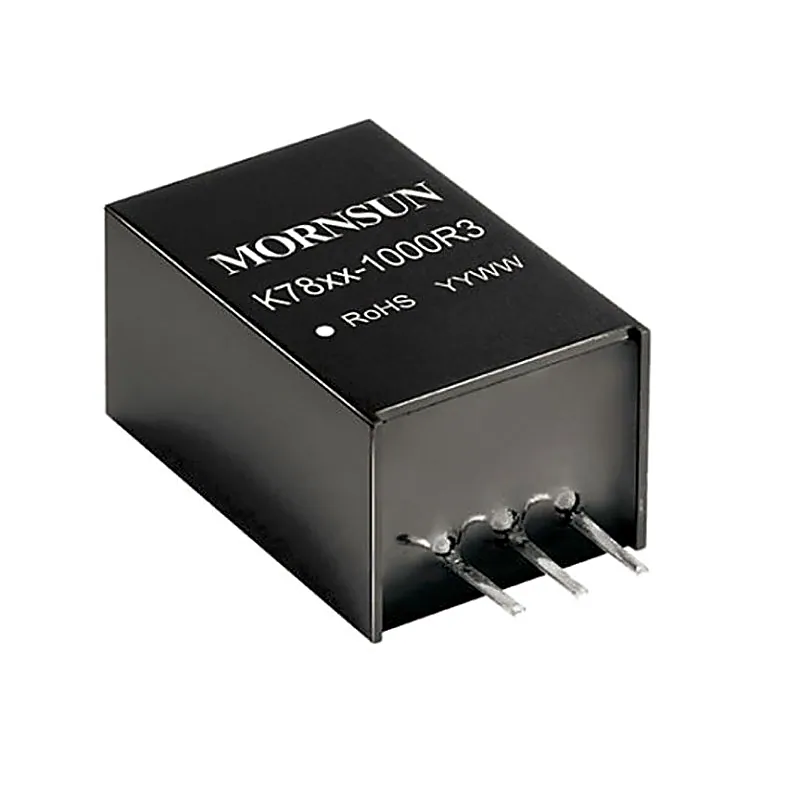

K7804-1000R3 Mornsun +4V/-4V Output DC-DC Converter 1W Power Supply Module - SIP Package
K7804-1000R3 Mornsun +4V/-4V Output DC-DC Converter 1W Power Supply Module - SIP Package
K7804-1000R3 series are high efficiency switching regulators and ideal substitutes of LM78XX series three-terminal linear regulators. The product is featured with high efficiency, low loss and no heat sink requirement. They are widely used in industrial control, electric power, and instrumentation a
+ 18% GST (added at checkout)
In stock — 35 units ready
- High efficiency up to 85%
- No-load input current as low as 0.1mA
- Operating ambient temperature range: -40℃ to+85℃
- Support the negative output
- Short-circuit protection
- Pin-out compatible with LM78XX linear regulators
- I/p Voltage range:8-36vdc
- Nominal voltage:24Vdc
- O/p voltage:+4V
- O/p current:1000(mA)
- wattage:1W
- Isolation: No
- Package: SIP
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
K7804-1000R3 series are high efficiency switching regulators and ideal substitutes of LM78XX series three-terminal linear regulators. The product is featured with high efficiency, low loss and no heat sink requirement. They are widely used in industrial control, electric power, and instrumentation applications. Features:- High efficiency up to 85% No-load input current as low as 0.1mA Operating ambient temperature range: -40℃ to+85℃ Support the negative output Short-circuit protection Pin-out compatible with LM78XX linear regulators Specifications:- I/p Voltage range:8-36vdc Nominal voltage:24Vdc O/p voltage:+4V O/p current:1000(mA) wattage:1W Isolation: No Package: SIP Package Includes:- 1 x K7804-1000R3 Mornsun +4V/-4V Output DC-DC Converter 1W Power Supply Module - SIP Package Download DATASHEET : Download
