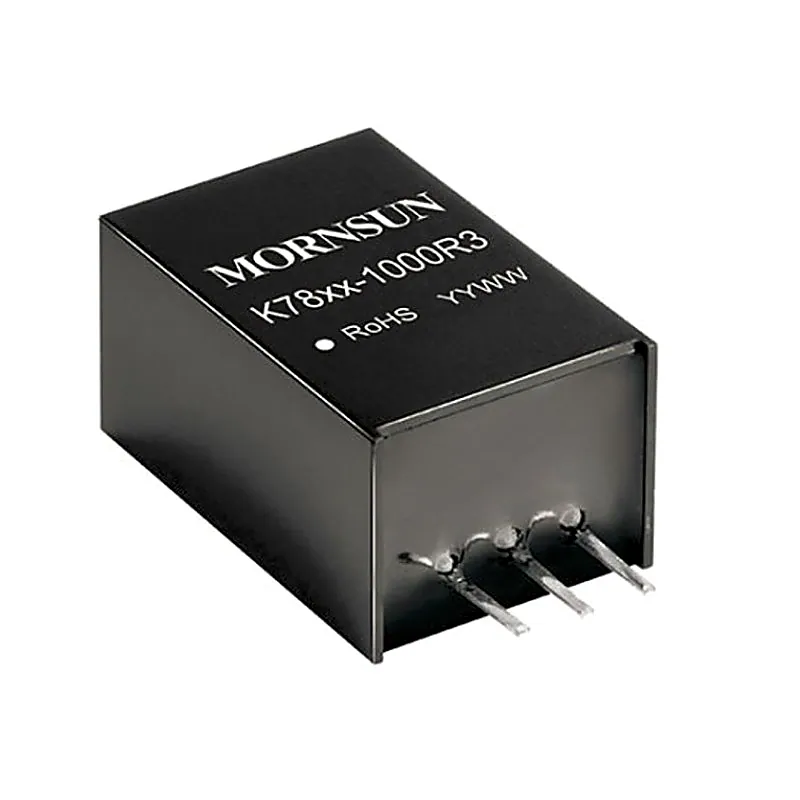

K7812-1000R3 Mornsun +12V/-12V Output DC-DC Converter 1W Power Supply Module - SIP Package

K7812-1000R3 series are high efficiency switching regulators and ideal substitutes for LM7812 series three-terminal linear regulators. The converters feature high efficiency, low loss, short circuit protection, positive or negative output voltage, and there is no need for a heatsink. These product are widely used in applications such as industrial control, instrumentation and electric power Features:- High efficiency up to 96% No-load input current as low as 0.1mA Operating ambient temperature range -40℃ to+85℃ Support the negative output Output short-circuit protection Pin compatible with LM78xx series IEC60950, UL60950, EN60950 Approval Specifications:- I/p Voltage range:16-36vdc Nominal voltage:24Vdc O/p voltage:12V O/p current:1000(mA) wattage:1W Isolation: No Package: SIP Package Includes:- 1 x K7812-1000R3 Mornsun +12V/-12V Output DC-DC Converter 1W Power Supply Module - SIP Package Download DATASHEET : Download
