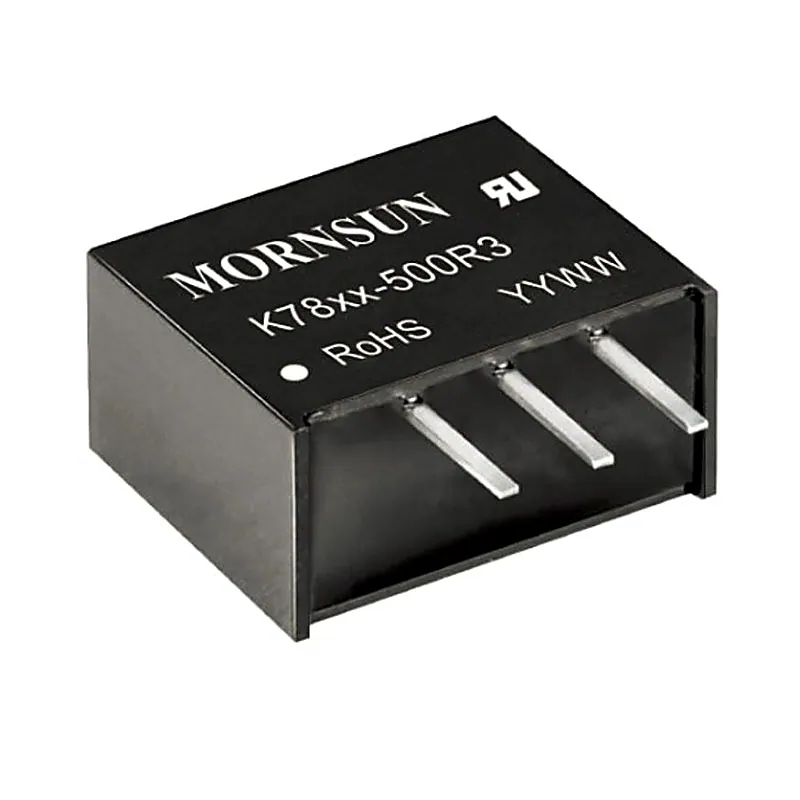

K7812-500R3 Mornsun +12V/-12V Output DC-DC Converter 0.5W Power Supply Module - SIP Package

K7812-500R3 series are high efficiency switching regulators and ideal substitutes for LM7812 series three-terminal linear regulators. The converters feature high efficiency, low loss, short circuit protection, positive or negative output voltage, and there is no need for a heat sink. These products are widely used in applications such as industrial control, instrumentation and electric power. Features:- High efficiency up to 95% No-load input current as low as 0.2mA Operating ambient temperature range: -40℃ to +85℃ Support the negative output Output short-circuit protection Pin-out compatible with LM78XX linear regulators IEC60950, UL60950, EN60950 approved Specifications:- I/p Voltage range:15-36vdc Nominal voltage:24Vdc , 12Vdc O/p voltage:+12V,-12V O/p current:500(mA) wattage:0.5W Isolation: No Package: SIP Package Includes:- 1 x K7812-500R3 Mornsun +12V/-12V Output DC-DC Converter 0.5W Power Supply Module - SIP Package Download DATASHEET : Download
