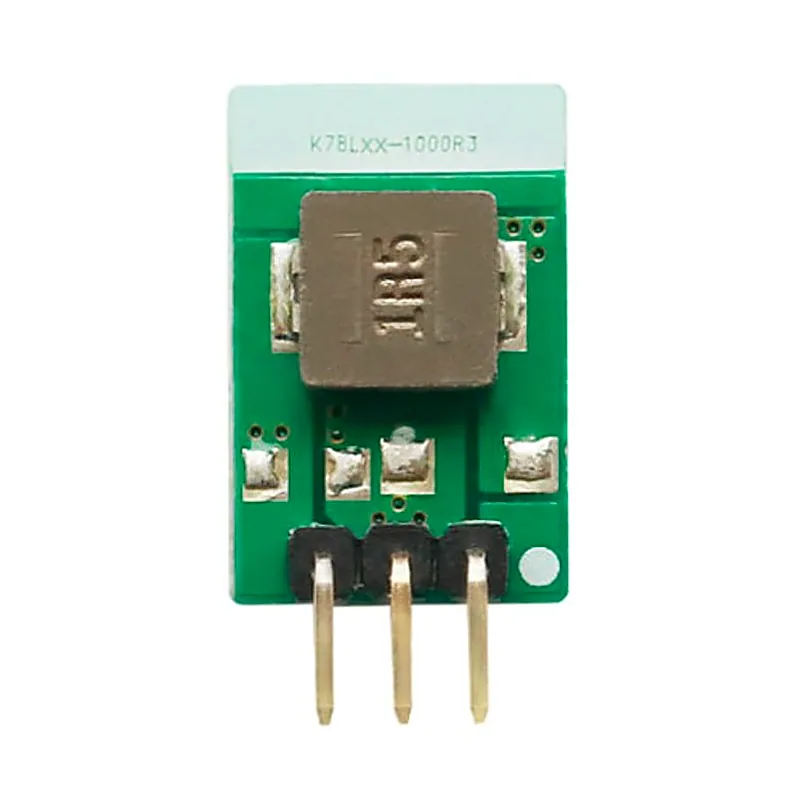

K78L04-1000R3 Mornsun +4V/-4V Output DC-DC Converter 1W High Efficiency Switching Regulator Module - SIP Package

K78(L)04-1000R3 series are high efficiency switching regulators and ideal substitutes of LM7804 series three-terminal linear regulators. The product is featured with high efficiency, low loss and no heat sink requirement. They are widely used in industrial control, electric power, and instrumentation applications Features:- High efficiency up to 85% No-load input current as low as 0.1mA Operating ambient temperature range: -40℃ to+85℃ Support the negative output Short-circuit protection Pin-out compatible with LM78XX linear regulators Specifications:- I/p Voltage range:8-36vdc Nominal voltage:24Vdc,12Vdc O/p voltage:+4V,-4V O/p current:1000(mA) wattage:1W Isolation: No Package: SIP Package Includes:- 1 x K78L04-1000R3 Mornsun +4V/-4V Output DC-DC Converter 1W High Efficiency Switching Regulator Module - SIP Package Download DATASHEET : Download
