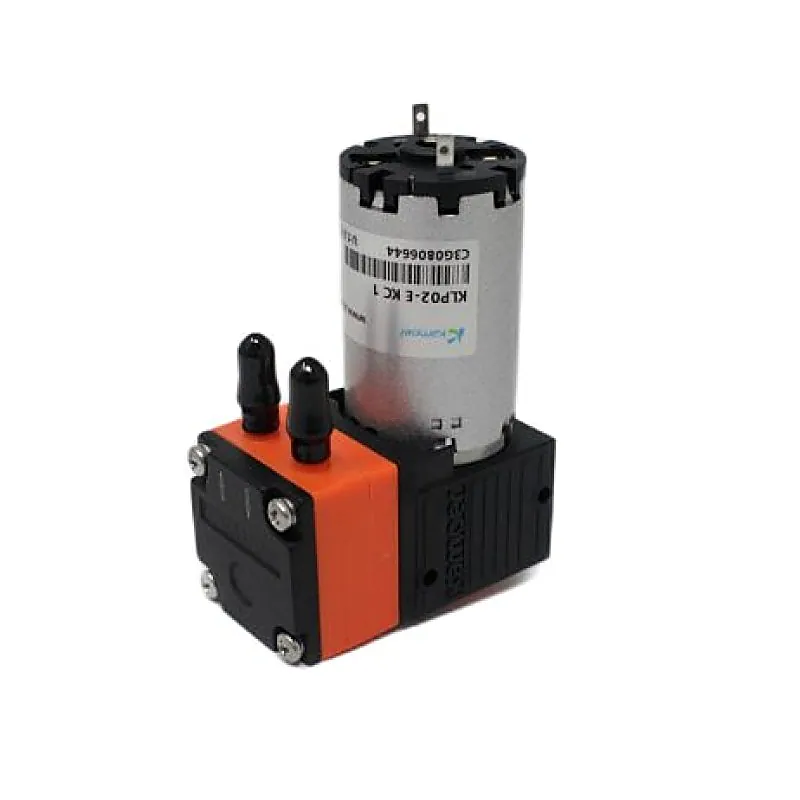

Kamoer KLP02-E KC 12V Single Head Brushed Motor Diaphragm Pump

This is a Kamoer KLP02-E KC 12V Single Head Brushed Motor Diaphragm Pump. KLP series micro diaphragm pumps from kamoer are based on a simple principle of the oscillating displacement pump, which is remarkably simple in design. The rotational power from the motors is converted into vertical movement by an eccentric gearbox. This motion is then transferred to a diaphragm by means of a connecting rod which is in conjunction with an inlet and outlet valve creates a pumping action. The KLP02 type liquid pumps can be mounted in any position and can deliver up to 350ml/min operated on 12V. Applications: Medical supporting equipment Liquid transport and sample analysis. Liquid packaging and distribution Wastewater sampling and transport Note: Actual product can vary from above image Features: Model: KLP02-E KC Self-Priming Low Power Consumption Long Life Compact Size Can Run in Dry Condition Low Noise Level. Package Includes: 1 x Kamoer 12V 0.36A 350ml/min tube liquid diaphragm pump Attachments : Download
