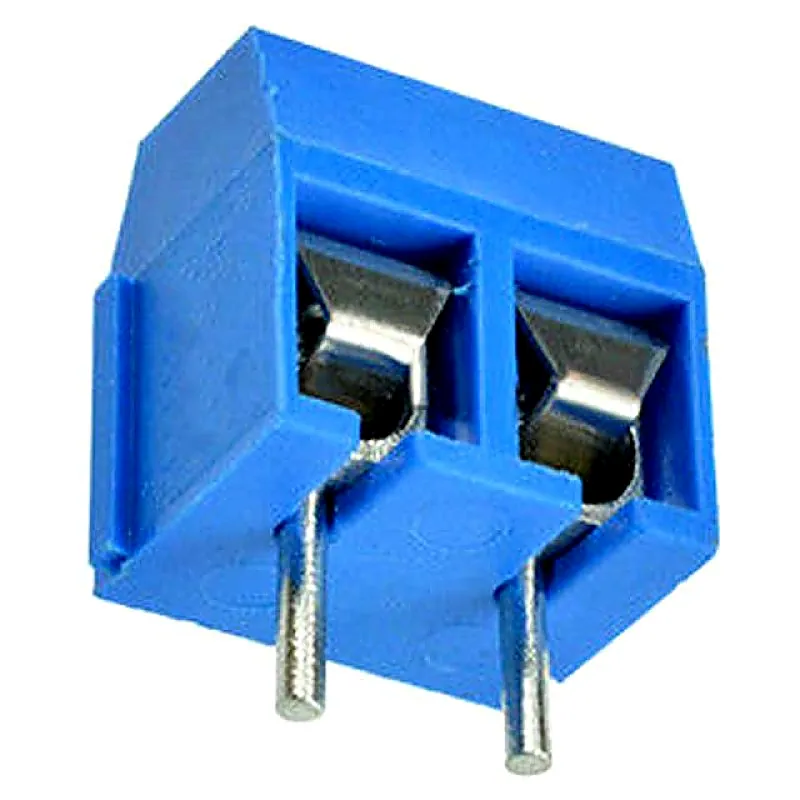

KF301 2 Pin 5.08mm Pitch Plug-in Screw Terminal Block Connector

KF301 2 Pin 5.08mm Pitch Plug-in Screw Terminal Block Connector is a type of electrical connector, frequently used to connect wires to the PCB. The connector has a screw in each pin to fasten the wire securely. It has tin-plated brass for pin header and has nickel-plated brass contacts. The connector is made of PBT (Polybutylene terephthalate) which is mechanically strong, heat resistant (UL94-0) and has good insulation properties. Features: Pin header: Tin plated brass. Contacts: Nickel-plated brass. Strong, compact, lightweight. Heat resistant. Package Includes: 1 x KF301 2 Pin 5.08mm Pitch Plug-in Screw Terminal Block Connector. Specifications :- Connector PCB Terminal Block Termination Screw No. of Contacts 2 Allowed Wire Size (AWG) 24 ~ 16 Voltage(V) 220V AC Operating Current (A) 10 Mounting Type Through Hole Pin Spacing (mm) 5.08 Material Metal and plastic Length (mm) 10 Width (mm) 7.5 Height (mm) 14 Weight (gm) 3
