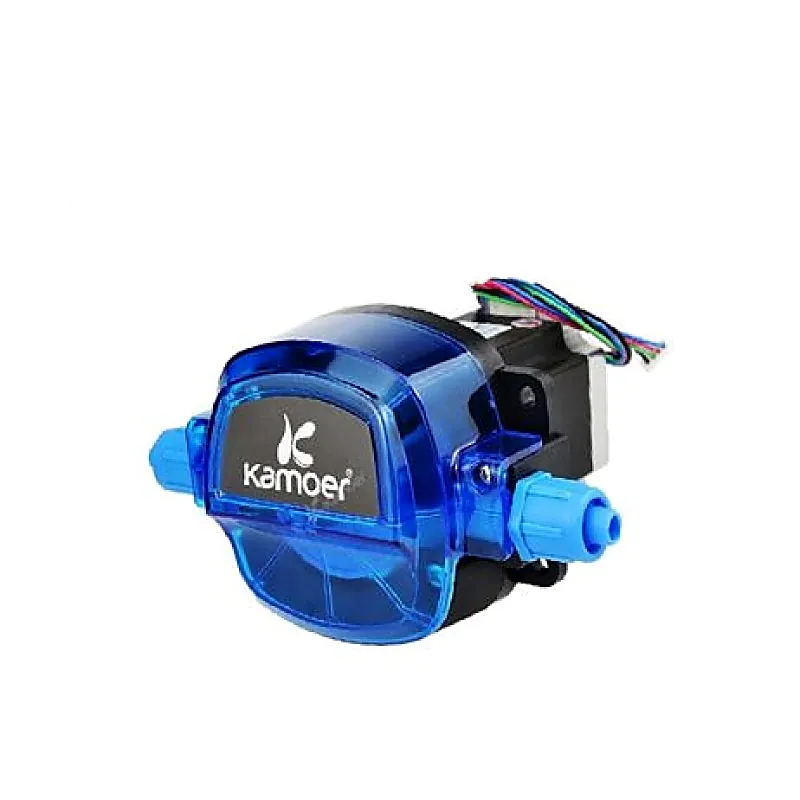

KHL-SZS35 Kamoer Pump 24V Stepper Motor(sz) 1.8A-1800ml(350RPM)| silicon tube 7.9*12.7

When pumping liquids and no direct contact with the liquid is required, the all-new range of peristaltic pumps from kamoer offers a simple solution. Unlike most pumps, peristaltic pumps squishes a silicone tube to produce the pump action instead of impelling it directly, thus no direct contact with the liquid. This pump requires a 24V DC supply and can produce a flow rate of up to 1800ml per minute. If speed control is required we suggest using a simple PWM signal. Application: Experiment Filling packaging Laboratory Research institutes Food industry Features: High flow High negative pressure Easy to maintenance Chemical stability Long life High repeatability Pump tube selection: silicone tube Transmission mode: the motor shaft is directly driven, the The motor rotates once, and the pump head rotates once Pump head: the upper cover is made of PC plastic and the The pump body is made of PA engineering plastic Installation method: fixed through the board Package Includes: 1 x KHL-SZS35 Kamoer Pump 24V Stepper Motor(sz) 1.8A-1800ml(350RPM) Attachments : Download
