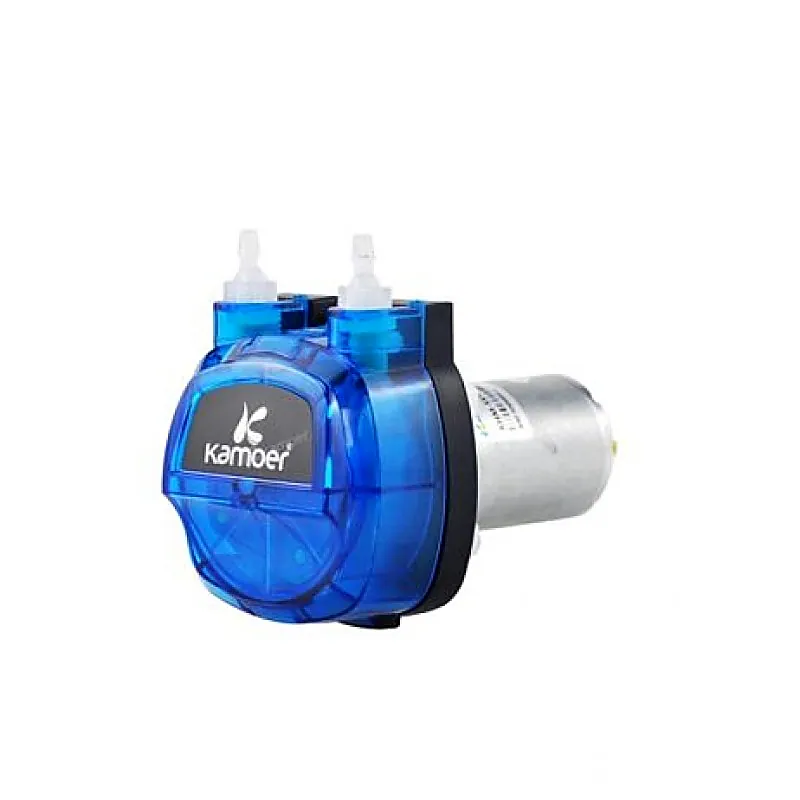

KHM-SV3S16 Kamoer Pump 24V BRUSHED(SV) 0.4A -S16 -360ml/min|Silicon tube 3.2*6.4

This is a KHM-SV3S16 Kamoer Pump 24V BRUSHED(SV) 0.4A -S16 -360ml/min|Silicon tube 3.2*6.4. When pumping liquids and no direct contact with the liquid is required, the all-new range of peristaltic pumps from kamoer offers a simple solution. Unlike most pumps, peristaltic pumps squishes a silicone tube to produce the pump action instead of impelling it directly, thus no direct contact with the liquid. This pump requires a 24V DC supply and can produce a flow rate of up to 360ml per minute. If speed control is required we suggest using a simple PWM signal. Application: Experiment Filling packaging Laboratory Research institutes Food industry Features: High flow High negative pressure Easy to maintenance Chemical stability Long life High repeatability 4 kinds of motors are available: 24V DC brush motor and brushless motor Flow rate range: 24V340~580ml/min Working conditions: temperature 0~40, humidity Pump tube selection: silicone tube, imported Norprene tube Transmission mode: planetary gear transmission, reduction ratio 1:8 Pump head: the upper cover is made of engineering plastics, the pump body PA and gears are made of synthetic engineering plastics Installation method: Straight plate and L plate Package Includes: 1 x KHL-SZS35 Kamoer Pump 24V Stepper Motor(sz) 1.8A-1800ml(350RPM) Attachments : Download
