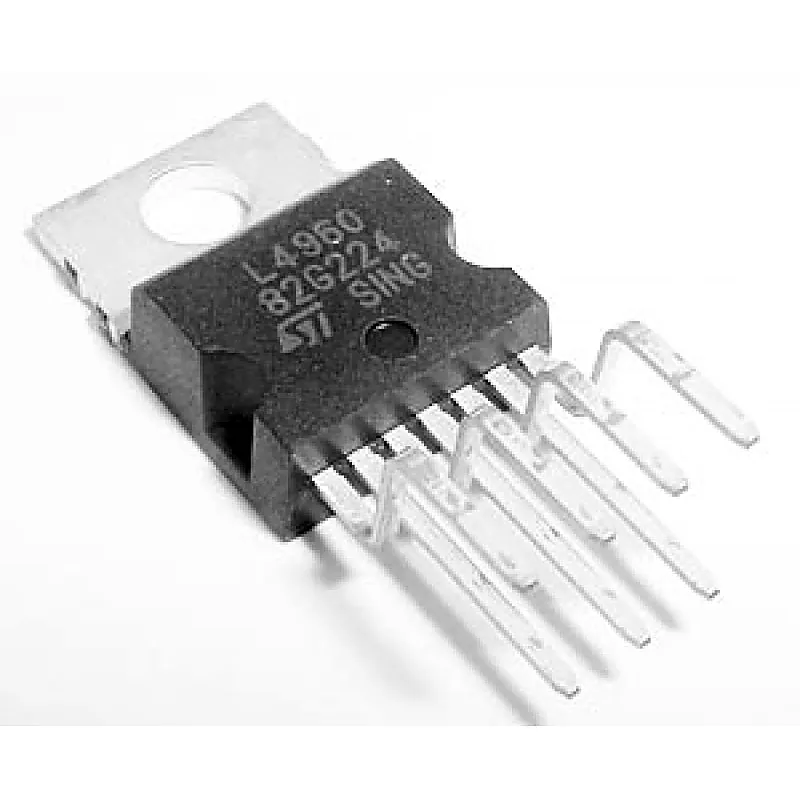

L4960 IC - 2.5A Switching Regulator IC

The L4960 is a monolithic power switching regulator delivering 2.5A at a voltage variable from 5V to 40V in step down configuration. Features of the device include current limiting, soft start, thermal protection and 0 to 100% duty cycle for continuous operation mode. The L4960 is mounted in a Heptawatt plastic power package and requires very few external components. Efficient operation at switching frequencies up to 150KHz allows a reduction in the size and cost of external filter components. Features:- • 2.5a Output Current • 5.1v To 40v Oputput Voltage Range • Precise (± 2%) On-Chip Reference • High Switching Frequency • Very High Efficiency (Up To 90%) • Very Few External Components • Soft Start • Internal Limiting Current • Thermal Shutdown Specifications:- Symbol Parameters Values Units V1 Input voltage 50 V V1 - V7 Input to output voltage difference 50 V V7 Negative output DC voltage -1 V Negative output peak voltage at t = 0.1µs; f = 100KHz -5 V V3, V5 Voltage at pin 3 and 6 5.5 V V2 Voltage at pin 2 7 V I3 Pin 3 sink current 1 mA I5 Pin 5 source current 20 mA Ptot Power dissipation at Tcase ≤ 90°C 15 W Tj, Tstg Junction and storage temperature -40 to 150 °C Related Document:- L4960 IC Data Sheet
