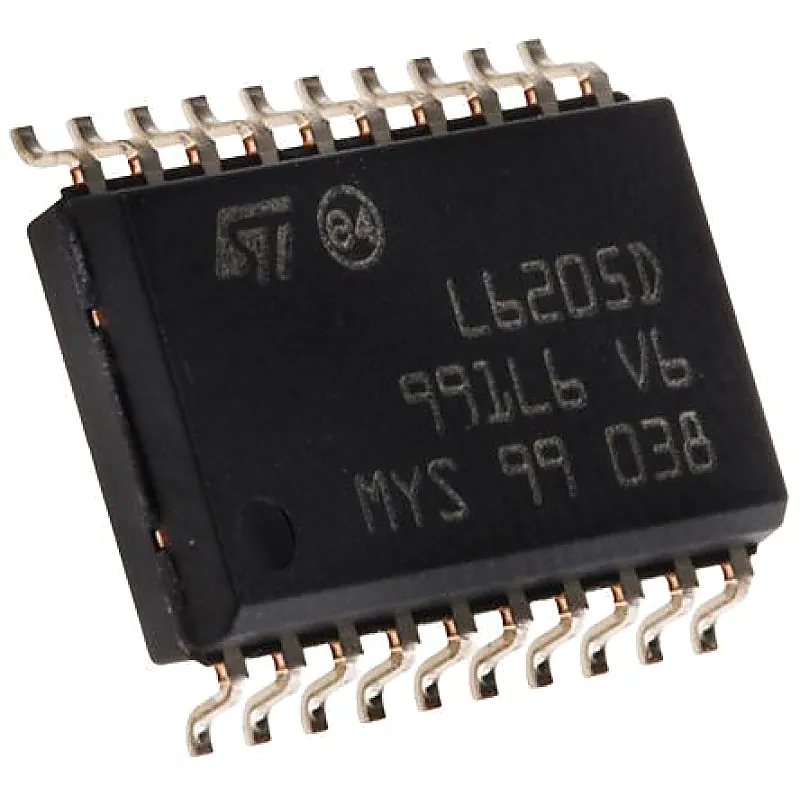

L6205 IC - (SMD Package) - DMOS Dual Full Bridge Driver IC
L6205 IC - (SMD Package) - DMOS Dual Full Bridge Driver IC
The L6205 is a DMOS Dual Full Bridge designed for motor control applications, realized in MultiPowerBCD technology, which combines isolated DMOS Power Transistors with CMOS and bipolar circuits on the same chip. The L6205 features a non-dissipative protection of the high side PowerMOSFETs and therma
+ 18% GST (added at checkout)
In stock — 20 units ready
- OPERATING SUPPLY VOLTAGE FROM 8 TO 52V
- 5.6A OUTPUT PEAK CURRENT (2.8A DC)
- RDS(ON) 0.3Ω TYP. VALUE @ Tj = 25 °C
- OPERATING FREQUENCY UP TO 100KHz
- NON DISSIPATIVE OVERCURRENT PROTECTION
- PARALLELED OPERATION
- CROSS CONDUCTION PROTECTION
- THERMAL SHUTDOWN
- UNDER VOLTAGE LOCKOUT
- INTEGRATED FAST FREE WHEELING DIODES
- BIPOLAR STEPPER MOTOR
- DUAL OR QUAD DC MOTOR
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The L6205 is a DMOS Dual Full Bridge designed for motor control applications, realized in MultiPowerBCD technology, which combines isolated DMOS Power Transistors with CMOS and bipolar circuits on the same chip. The L6205 features a non-dissipative protection of the high side PowerMOSFETs and thermal shutdown. Features of L6205 IC:- OPERATING SUPPLY VOLTAGE FROM 8 TO 52V 5.6A OUTPUT PEAK CURRENT (2.8A DC) RDS(ON) 0.3Ω TYP. VALUE @ Tj = 25 °C OPERATING FREQUENCY UP TO 100KHz NON DISSIPATIVE OVERCURRENT PROTECTION PARALLELED OPERATION CROSS CONDUCTION PROTECTION THERMAL SHUTDOWN UNDER VOLTAGE LOCKOUT INTEGRATED FAST FREE WHEELING DIODES Applications of L6205 IC:- BIPOLAR STEPPER MOTOR DUAL OR QUAD DC MOTOR
