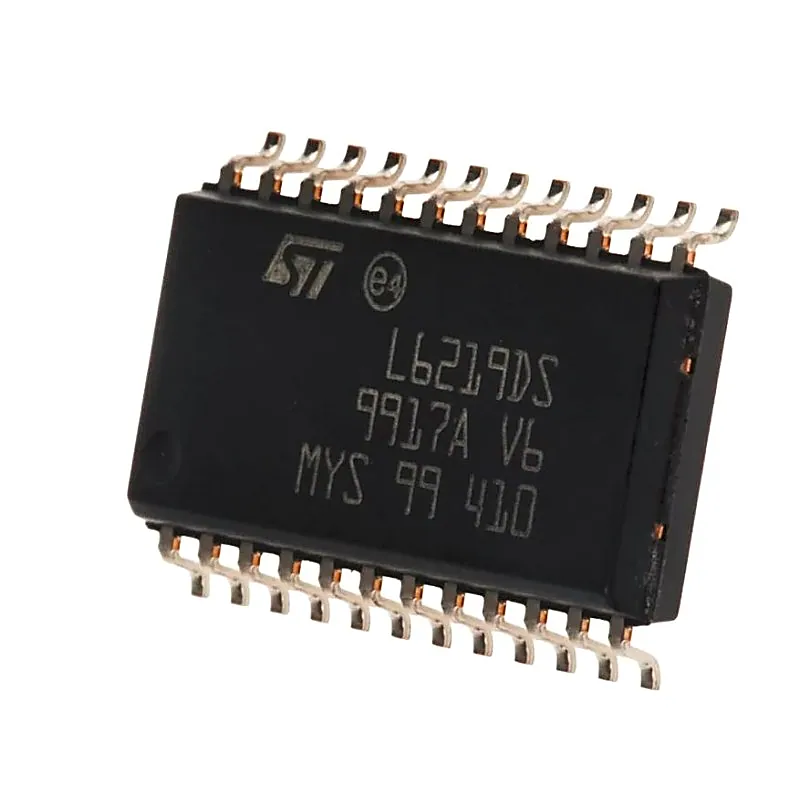

L6219 IC - (SMD Package) - Stepper Motor Driver IC

The L6219 is a bipolar monolithic integrated circuits intended to control and drive both winding of a bipolar stepper motor or bidirectionally control two DC motors. The L6219 with a few external components form a complete control and drive circuit for LS-TTL or microprocessor controlled stepper motor system. The power stage is a dual full bridge capable of sustaining 46 V and including four diodes for current recirculation. A cross conduction protection is provided to avoid simultaneous cross conduction during switching current direction. An internal pulse-width-modulation (PWM) controls the output current to 750 mA with peak startup current up to 1 A. Wide range of current control from 750 mA (each bridge) is permitted by means of two logic inputs and an external voltage reference. A phase input to each bridge determines the load current direction. A thermal protection circuitry disables the outputs if the chip temperature exceeds safe operating limits. Features:- Able to drive both windings of bipolar stepper motor Output current up to 750 mA each winding Wide voltage range: 10 V to 46 V Half-step, full-step and microstepping mode Built-in protection diodes Internal PWM current control Low output saturation voltage Designed for unstabilized motor supply voltage Internal thermal shutdown Specification:- Parameter Value Unit Vs Supply voltage 50 V IO Output current (peak) +-1 V IO Output current (continuous) +-0.75 V Vss Logic supply voltage 7 A Vin Logic input voltage range -0.3 to 7 V Vsense Sense output voltage 1.5 W Tj Junction temperature 150 °C Top Operating temperature range -20 to 85 °C Tstg Storage temperature range -55 to 150 °C Related Document:- L6219 IC Data Sheet
