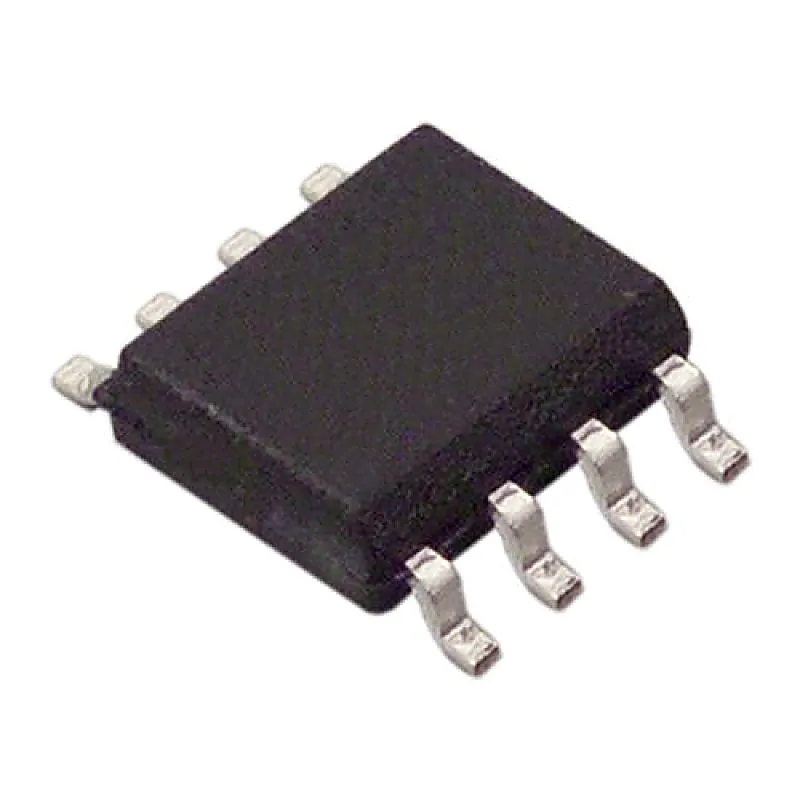

L6565 IC - (SMD Package) - Quasi-Resonant SMPS Controller IC

The L6565 is a current-mode primary controller IC, specifically designed to build offline Quasi-resonant ZVS (Zero Voltage Switching at switch turn-on) flyback converters. Quasi-resonant operation is achieved by means of a transformer demagnetization sensing input that triggers MOSFET's turn-on. Converter's power capability variations with the mains voltage are compensated by line voltage feedforward. At light load the device features a special function that automatically lowers the operating frequency still maintaining the operation as close to ZVS as possible. In addition to very low start-up and quiescent currents, this feature helps keep low the consumption from the mains at light load and be Blue Angel and Energy Star compliant. The IC includes also a disable function, an on-chip filter on current sense, an error amplifier with a precise reference voltage for primary regulation and an effective two-level overcurrent protection. Features of L6565 IC:- QUASI-RESONANT (QR) ZERO-VOLTAGESWITCHING (ZVS) TOPOLOGY LINE FEED FORWARD TO DELIVER CONSTANT POWER vs. MAINS CHANGE FREQUENCY FOLDBACK FOR OPTIMUM STANDBY EFFICIENCY PULSE-BY-PULSE & HICCUP-MODE OCP ULTRA-LOW START-UP (< 70µA) AND QUIESCENT CURRENT (< 3.5mA) DISABLE FUNCTION (ON/OFF CONTROL) 1% PRECISION (@ Tj = 25°C) INTERNAL REFERENCE VOLTAGE ±400mA TOTEM POLE GATE DRIVER WITH UVLO PULL-DOWN BLUE ANGEL, ENERGY STAR, ENERGY 2000 COMPLIANT Applications of L6565 IC:- TV/MONITOR SMPS AC-DC ADAPTERS/CHARGERS DIGITAL CONSUMER PRINTERS, FAX MACHINES, PHOTOCOPIERS AND SCANNERS
