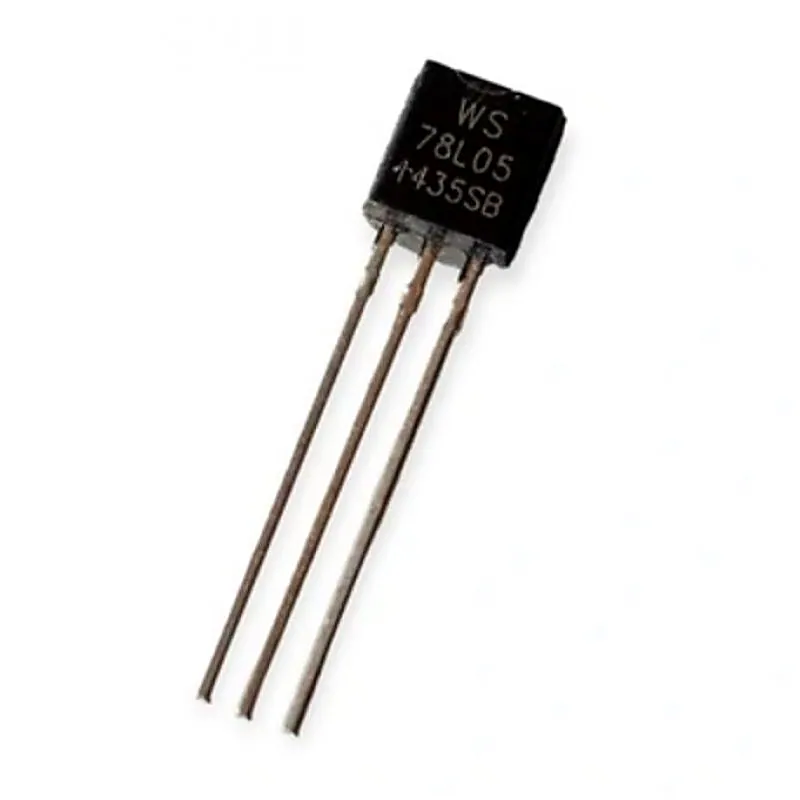

L78L05CZ Positive Voltage Regulator TO-92 Package

The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise. Features:- Output current up to 100 mA Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 24 V thermal overload protection Short-circuit protection No external components are required Specifications:- Part No: L78L05CZ Manufacturer: STMicroelectronics Product Category: Linear Voltage Regulators Output Voltage: 5V Output Current: 100 mA Output Type: Fixed Input Voltage MAX: 30V Input Voltage MIN: 7V Load Regulation: 60mV Line Regulation: 150mV Mounting Style: Through Hole Packaging: Bag Package/Case: TO-92-3 Package Includes:- 1 x L78L05CZ Positive Voltage Regulator TO-92 Package
