Laser Diode - Red - 650nm - (3V to 5V) - 6mm - 5mW
Laser Diode - Red - 650nm - (3V to 5V) - 6mm - 5mW

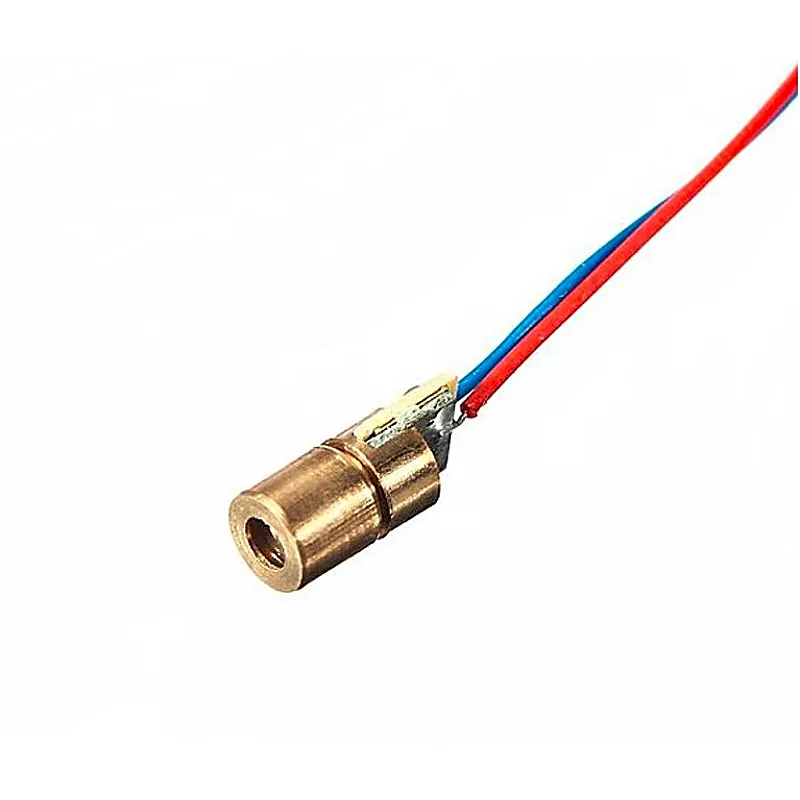

The 650nm 6mm 5V DC 5mW Mini Laser Dot Diode Module which is made of copper plastic. It is suitable for 3V 5mW standard, with 6mm outside diameter, can be used to connect diode tubes for multiple uses. • Output Power: 5mW • Working Voltage: 5V DC • Working temperature: -10 ℃~＋40 ℃ • Housing material
+ 18% GST (added at checkout)
In stock — 144 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 650nm 6mm 5V DC 5mW Mini Laser Dot Diode Module which is made of copper plastic. It is suitable for 3V 5mW standard, with 6mm outside diameter, can be used to connect diode tubes for multiple uses. • Output Power: 5mW • Working Voltage: 5V DC • Working temperature: -10 ℃~＋40 ℃ • Housing material: Copper • Working life: more than 2000 hours • Spot mode: Dot Facula (continuous output) • Laser wavelength: 650nm red-colored. • Operating current: <40mA • Power lead length: 120mm. Specification:- Symbol Prameter Value Unit Po Optical Output 5 m W Vr Reverse Laser 2 V Tj Operating Temperature -10～+40 ℃ Tstg Storage Temperature -15～+85 ℃ Related Document;- 650nm Laser Diode Data Sheet
