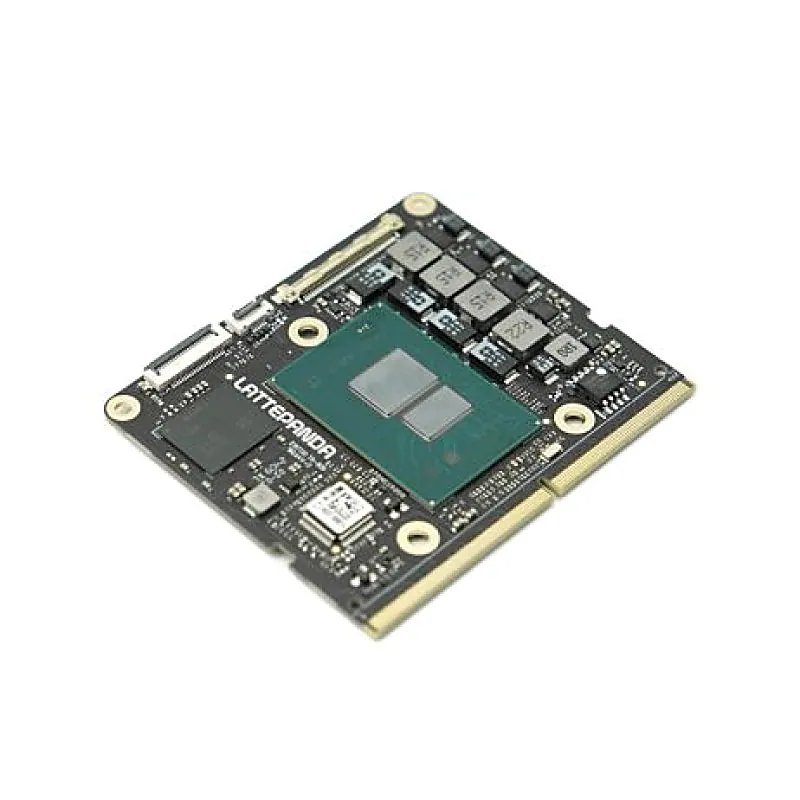

LattePanda Mu A Micro x86 Compute Module (N305 CPU, 16GB RAM, 64GB eMMC)

The LattePanda Mu is a compact x86 compute module powered by the Intel N305 octa-core processor, delivering powerful performance in a tiny 69.6x60mm form factor. It boasts 16GB LPDDR5 memory, 64GB eMMC storage, and rich I/O options including PCIe, USB 3.2, HDMI, SATA, and GPIOs. Designed for flexibility, it supports Windows and Ubuntu, customizable carrier boards, and a configurable TDP from 9W to 35W for efficient to high-performance needs. Features: High Performance: Intel Core i3-N305 (8-core, 8-thread, up to 3.8GHz) Compact Size: Just 69.6mm x 60mm, perfect for embedded applications Rich Expansion: 9 PCIe lanes, 4 USB 3.2, 8 USB 2.0, 3 HDMI/DP, 2 SATA Flexible TDP: Adjustable from 9W to 35W for silent or high-performance operation Multi-OS Support: Runs Windows 10, Windows 11, and Ubuntu Open-Source Carrier Design: KiCAD design files for quick customization Package Includes: 1 x LattePanda Mu A Micro x86 Compute Module 1 x User Manual.
