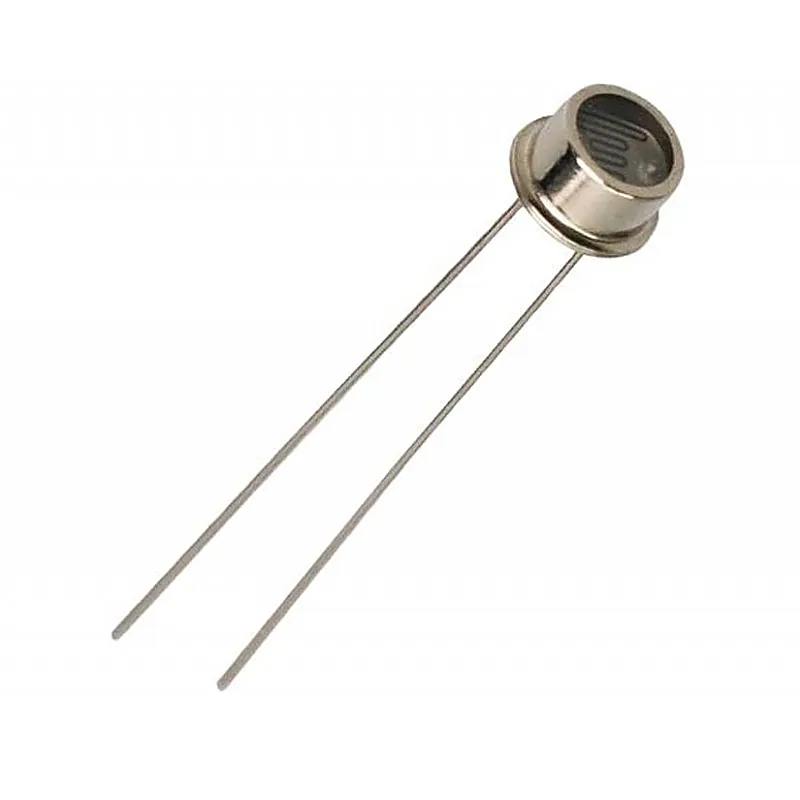

LDR - 5mm - Metal Housing
LDR - 5mm - Metal Housing
LDR 5mm – Metal Housing is a resistor which made of semi-conductor material, and the conductance changes with luminance variation .The photoresistor can be manufactured with different figures and illuminated area based on this characteristic. Photoresistor is widely used in many industries, such as
+ 18% GST (added at checkout)
In stock — 331 units ready
- Epoxy Resin
- Small size
- Fast respond
- Good encapsulation reliability
- High sensitivity
- Good spectrum characteristic
- Diameter : 5mm
- Number of Pins : 2
- Material : Metal Case
- Max Voltage : 150 Vdc
- Max Power : 100mW
- Ambient Temperature : -30 deg C ~ 70 deg C
- Spectral Peak : 540nm
- Light Resistance at 10Lux : 20-30 K ohm
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
LDR 5mm – Metal Housing is a resistor which made of semi-conductor material, and the conductance changes with luminance variation .The photoresistor can be manufactured with different figures and illuminated area based on this characteristic. Photoresistor is widely used in many industries, such as toys, lamps, camera, etc. Features:- Epoxy Resin Small size Fast respond Good encapsulation reliability High sensitivity Good spectrum characteristic Specifications:- Diameter : 5mm Number of Pins : 2 Material : Metal Case Max Voltage : 150 Vdc Max Power : 100mW Ambient Temperature : -30 deg C ~ 70 deg C Spectral Peak : 540nm Light Resistance at 10Lux : 20-30 K ohm Package Includes:- 1 x LDR - 5mm - Metal Housing
