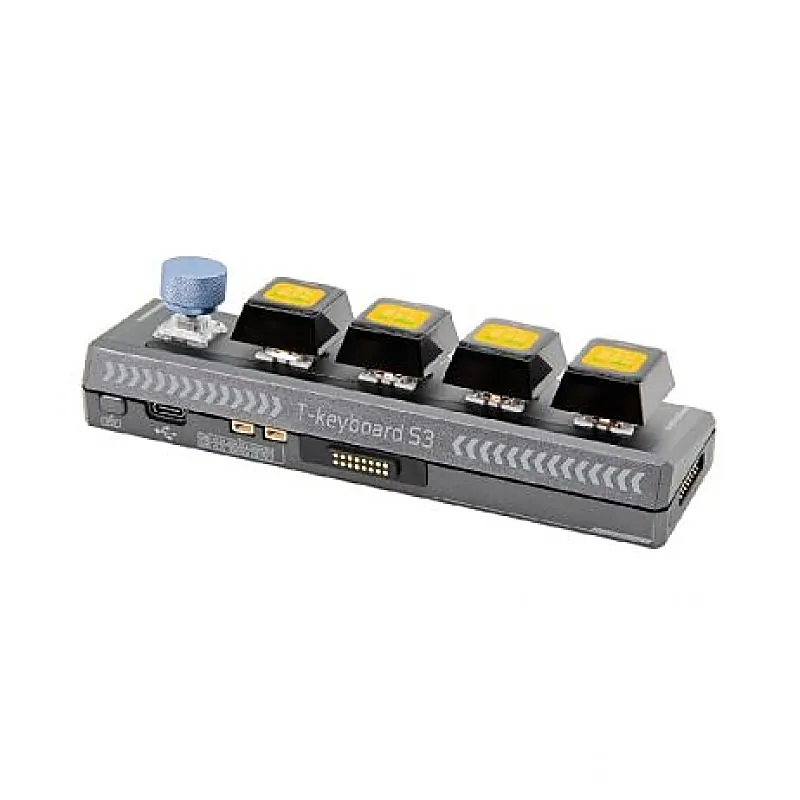

LILYGO T-Keyboard S3 Pro Development Board

The LILYGO T-Keyboard S3 Pro is a modular development board featuring an ESP32-S3R8 microprocessor with 2.4 GHz Wi-Fi and Bluetooth 5 (LE) connectivity. It offers four magnetic connectors for seamless expansion, allowing up to six units to form a 23 grid. Each unit includes five 0.85-inch TFT LCD screens with 128128 resolution, with the fifth screen position optionally replaced by a rotary encoder. Additionally, it features 14 programmable RGB LEDs with customizable brightness. The board comes with 16MB flash and 8MB PSRAM, supporting Arduino development. Features: ESP32-S3R8 Processor: Built with the powerful ESP32-S3R8 microprocessor for fast processing. Wi-Fi & Bluetooth: Supports 2.4GHz Wi-Fi and Bluetooth 5 (LE) for wireless communication. Expandable Design: Modular design with magnetic connectors for easy expansion (up to six units in a 23 grid). TFT LCD Screens: Includes five 0.85-inch TFT LCD screens with 128128 resolution. Rotary Encoder: Option to replace one screen with a rotary encoder for additional functionality. RGB LEDs: Features 14 programmable RGB LEDs with adjustable brightness. Large Flash Memory: 16MB of flash memory for data storage. 8MB PSRAM: 8MB of PSRAM for improved performance in memory-intensive applications. Arduino Compatible: Fully supported by the Arduino IDE for easy development. Compact & Versatile: Ideal for various projects, including portable devices and IoT applications.
