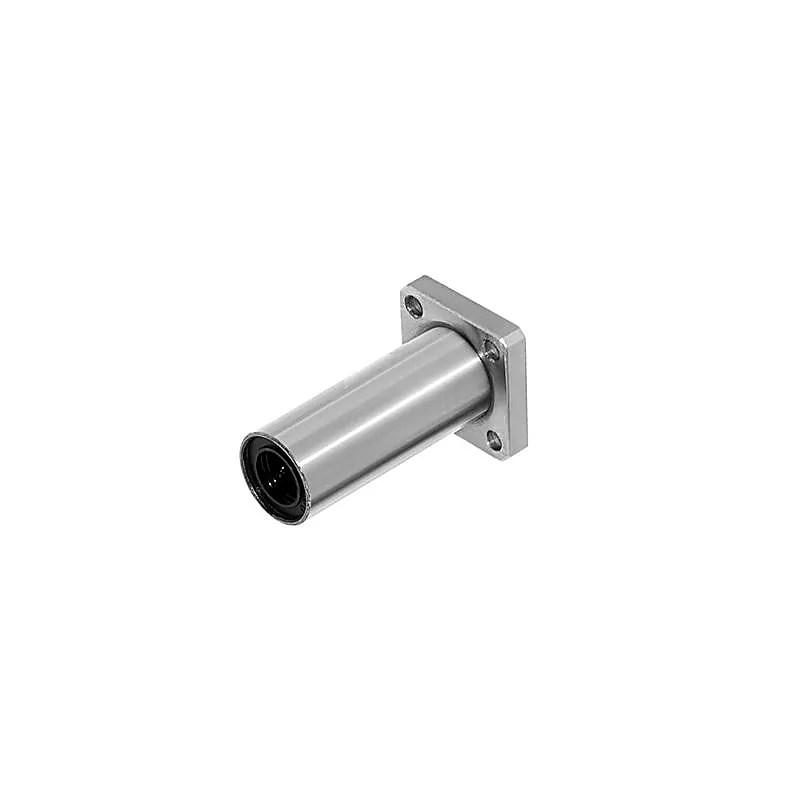

Linear Bearing LMK12LUU 12mm Square Flange Bushing

The Linear Bearing LMK12LUU 12mm Square Flange Bushing is a low-cost linear motion system which equips with the cylindrical shaft. The working load of such bearings is small due to the point contact of the ball and the shaft. The balls can rotate with minimal frictional resistance, thus obtaining high-precision smooth movement. The Bearings gives you very precise, safe and reliable linear motion system. Such linear motion bearings are mostly used in3D printers and CNC(Computer Numerical Control) machines. Widely used in home appliances, industrial, low noise and high-speed electric motors, construction machinery, automotive components, pumps, and machinery. Features : Smooth moving Low friction High rigid Long life Economical and easy to maintain. Package Includes : 1 x Linear Bearing LMK12LUU 12mm Square Flange Bushing Specifications :- Ball Circuits 4 Color silver Length (mm) 57 Model LMK12LUU Outer Casing Chromium Steel Outer Diameter(mm) 21 Shaft ID(mm) 12 Square Size (mm) 32 Weight (gm) 75
