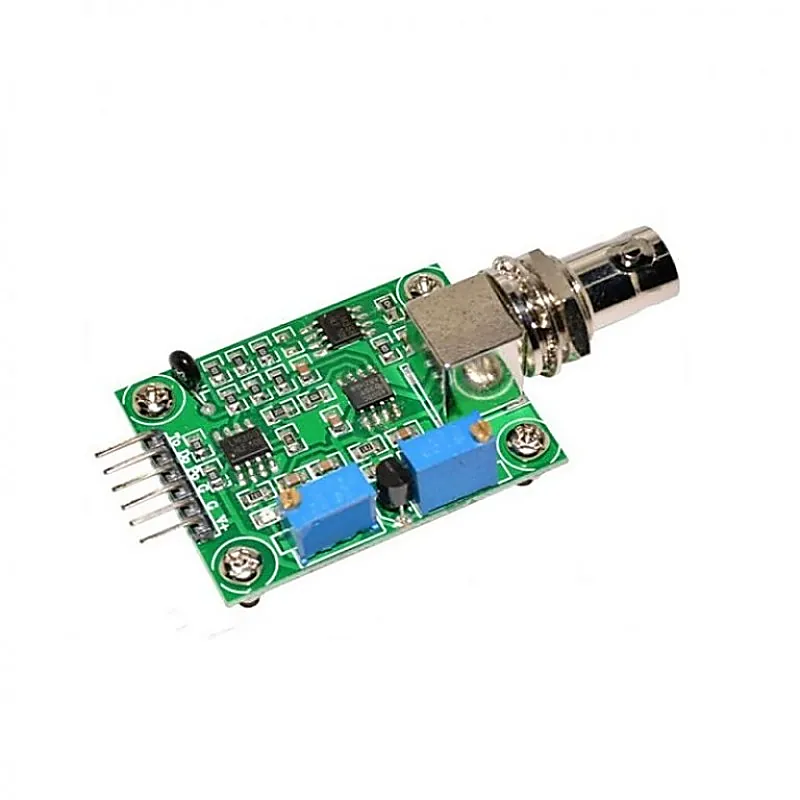

Liquid pH Value Detection Sensor for Arduino

This is Liquid pH Value Detection Sensor for Arduino. The pH stands for the power of hydrogen, which is a measurement of the hydrogen ion concentration in the body. This is used in Water quality testing and Aquaculture. The total pH scale ranges from 1 to 14, with 7 considered to be neutral. A pH less than 7 is said to be acidic and solutions with a pH greater than 7 are basic or alkaline. The PH electrode has a single cylinder that allows direct connection to the input terminal of a pH meter, controller, or any pH device which has a BNC input terminal. The pH electrode probe is accurate and reliable that can give almost instantaneous readings. Package Includes : 1 x Liquid pH Value Detection Sensor For Arduino 1 x set of Mounting Accessories Specifications :- Heating Voltage (V) 5±0.2V Working Current (mA) 5 to 10 Detection Concentration Range PH 0-14 Detection Range of Temperature (C) 0 to 60 Response Time (s) ≤ 5 Stability Time (s) ≤ 60 Power Consumption (W) 0.5 Operating Temperature (C) -10 to 50 Working Humidity (%RH) 95 PCB Size ( L x W ) mm 42 x 32 Height (mm) 16 Weight (gm) 20
