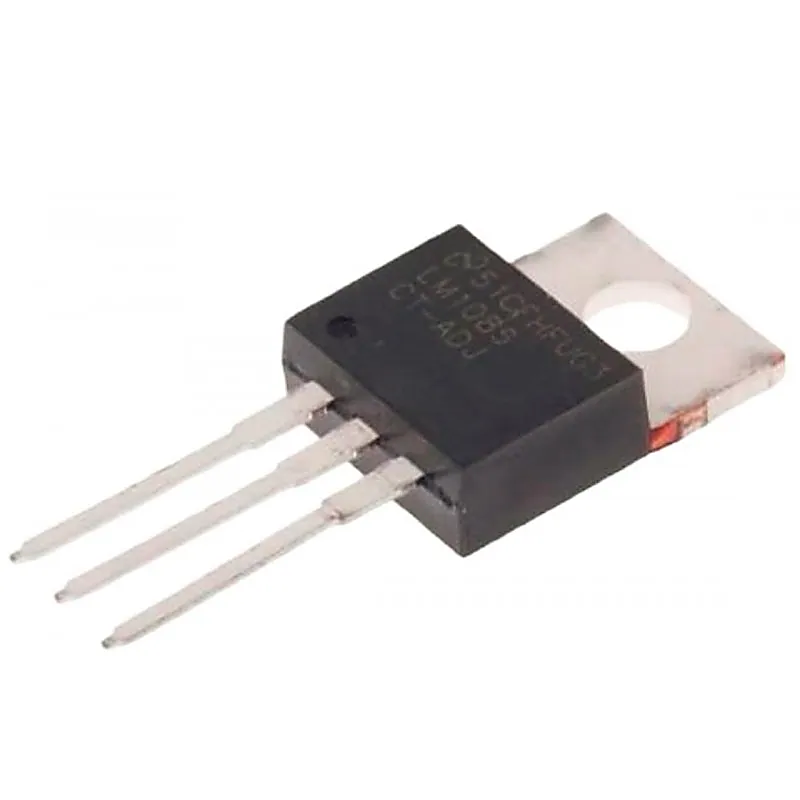

LM1085-ADJ (LM1085) - 3A Adjustable Low Dropout (LDO) Positive Voltage Regulator

The LM1085 is a regulator with a maximum dropout of 1.5 V at 3 A of load current. It has the same pin-out as TI’s industry standard LM317. Two resistors are required to set the output voltage of the adjustable output voltage version of the LM1085. Fixed output voltage versions integrate the adjust resistors. The LM1085 circuit includes a zener trimmed bandgap reference, current limiting and thermal shutdown. Features:- Available in 3.3-V, 5.0-V, 12-V and Adjustable Versions Current Limiting and Thermal Protection Output Current 3 A Line Regulation 0.015% (typical) Load Regulation 0.1% (typical) Specification:- Parameter Specification Part number LM1085 Output options Adjustable Output, Fixed Output Iout (Max) (A) 3 Vin (Max) (V) 29 Vin (Min) (V) 2.6 Vout (Max) (V) 27.5 Vout (Min) (V) 1.25 Fixed output options (V) 3.3, 5, 12 Package Group DDPAK/TO-263 | 3, TO-220 | 3 Regulated outputs (#) 1 Operating temperature range ( C ) -40 to 125 Thermal resistance θJA (°C/W) 23 Noise (uVrms) 38 Rating See Data Sheet PSRR @ 100 KHz (dB) 30 Accuracy (%) 4 Dropout voltage (Vdo) (Typ) (mV) 1300 Iq (Typ) (mA) 5 Package size: mm2:W x L (PKG) 3DDPAK/TO-263: 155 mm2: 15.24 x 10.16 (DDPAK/TO-263 | 3) 3TO-220: 47 mm2: 4.58 x 10.16 (TO-220 | 3) Related Document:- LM1085 ADJ Data Sheet
