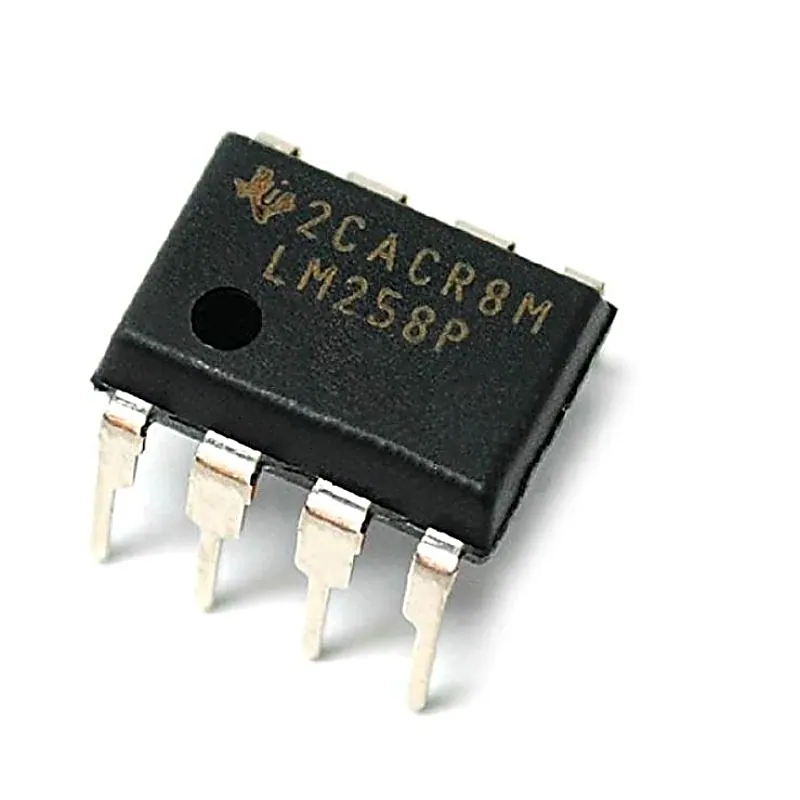

LM258 Low Power Dual Operational Amplifier IC DIP-8 Package

LM258 is dual operational amplifiers IC and is a member of ‘LMxx’ family. The ‘LM’ series originated with integrated circuits made by National Semiconductor. The prefix ‘LM’ stands for linear monolithic, referring to the analog components integrated onto a single piece of silicon. The chip consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. Features:- Wide range of supply voltage Can work from single power supply Two individually operated operational amplifiers Low noise interference among op-amps Specifications:- Wide Bandwidth (Unity Gain): 1 MHz Large DC Voltage Gain: 100 dB Low Input Offset Voltage: 2 mV Input common-mode voltage range includes ground Differential input voltage range equal to the power supply voltage Internal Frequency Compensation Single Supply Operation: +3.0 V to +32 V Dual Supply Operation: +16V and -16V Very Low Supply Current Drain (500µA) Operating temperature: -25ºC to 85ºC Total power dissipation: 830mW Package Includes:- 1 x LM258 Low Power Dual Operational Amplifier IC DIP-8 Package
