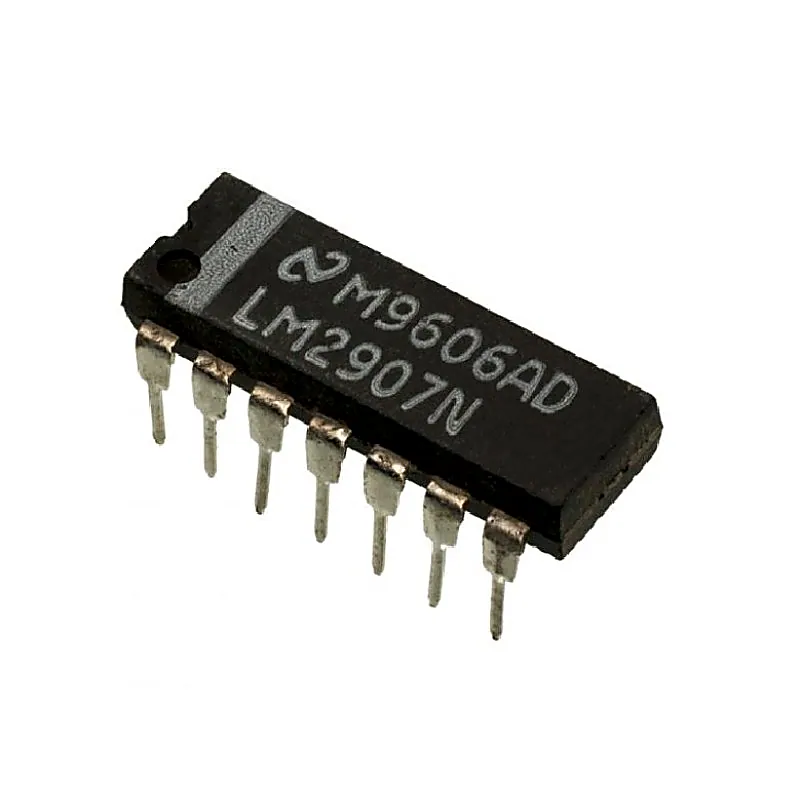

LM2907 Frequency to Voltage Converter IC DIP-14 Package

The LM2907 and LM2917 devices are monolithic frequency-to-voltage converters with a high gain op amp designed to operate a relay, lamp, or other load when the input frequency reaches or exceeds a selected rate. The tachometer uses a charge pump technique and offers frequency doubling for low ripple, full-input protection in two versions (8-pin LM2907 and LM2917), and its output swings to ground for a zero frequency input. The op amp is fully compatible with the tachometer and has a floating transistor as its output. This feature allows either a ground or supply referred load of up to 50 mA. The collector may be taken above VCC up to a maximum VCE of 28 V. The two basic configurations offered include an 8-pin device with a ground-referenced tachometer input and an internal connection between the tachometer output and the op amp noninverting input. This version is well suited for single speed or frequency switching or fully buffered frequency-to-voltage conversion applications Features and Specifications:- Ground referenced tachometer input interfaces directly with variable reluctance magnetic pickups Op amp/comparator has floating transistor output 50 mA sink or source to operate relays, solenoids, meters, or LEDs Frequency doubling for low ripple Tachometer has built-in hysteresis with either differential input or ground referenced input Built-in zener on LM2917 ±0.3% linearity typical Ground referenced tachometer is fully protected from damage due to swings above VCC and below ground Applications:- Over- and Under-Speed Sensing Frequency-to-Voltage Conversion (Tachometer) Speedometers Breaker Point Dwell Meters Hand-Held Tachometers Speed Governors Cruise Control Automotive Door Lock Control Clutch Control Horn Control Touch or Sound Switches Package Includes:- 1 x LM2907 Frequency to Voltage Converter IC DIP-14 Package
