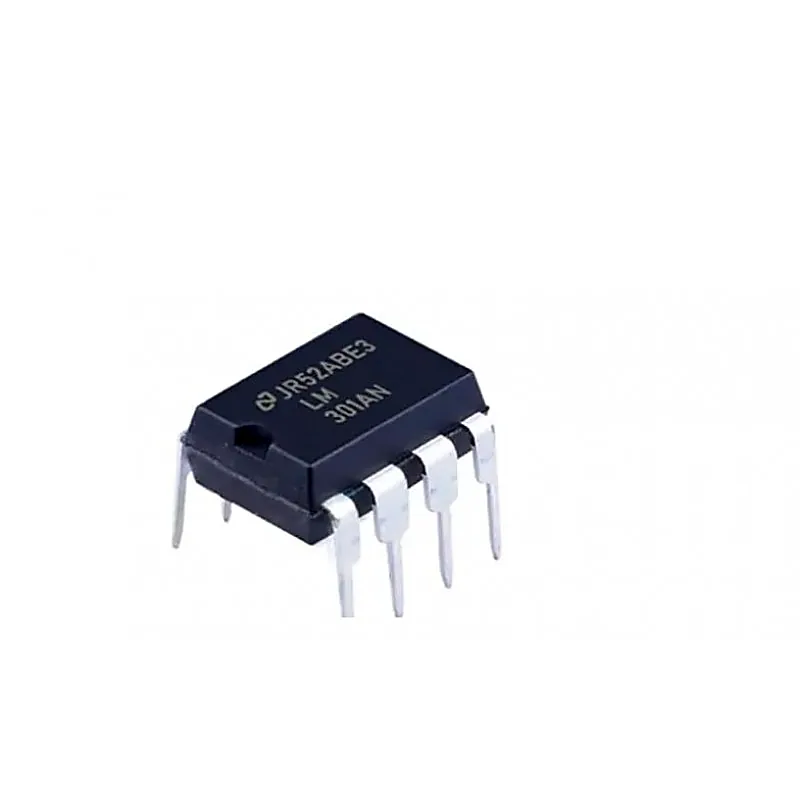

LM301 Single Operational Amplifier IC DIP-8 Package

LM301 Single Operational Amplifier IC DIP-8 Package LM301 is a general purpose operational amplifiers that feature improved performance over industry standards like the LM709. The IC offers many features which make its application nearly foolproof: Overload protection on the input and output, no latch-up when the common mode range is exceeded, and freedom from oscillations and compensation with a single 30 pF Capacitor. It has advantages over internally compensated amplifiers in that the frequency compensation can be tailored to the particular application. Features:- Short circuit protection and latch free operation Slew rate of 10V/µs as a summing amplifier Class AB output provides excellent linearity Low bias current Applications:- Used in audio automotive designs such as car stereos, radios & Hi-Fi audio setups. Widely used in sound systems such as speakers, high power megaphones, & large scale acoustic systems. An integral part of entertainment systems such as a home theatre setups. Specifications:- Slew Rate : 0.5V/µs Current Input Bias : 70nA Voltage Input Offset : 2mV Current Supply : 1.8mA Voltage – Supply, Single/Dual (±) : ±5V ~ 18V Operating Temperature : 0°C ~ 70°C Storage Temperature Range:-65 to +150ºC Supply Voltage:±22V Input Voltage:±15V Package Includes:- 1 x LM301 Single Operational Amplifier IC DIP-8 Package
