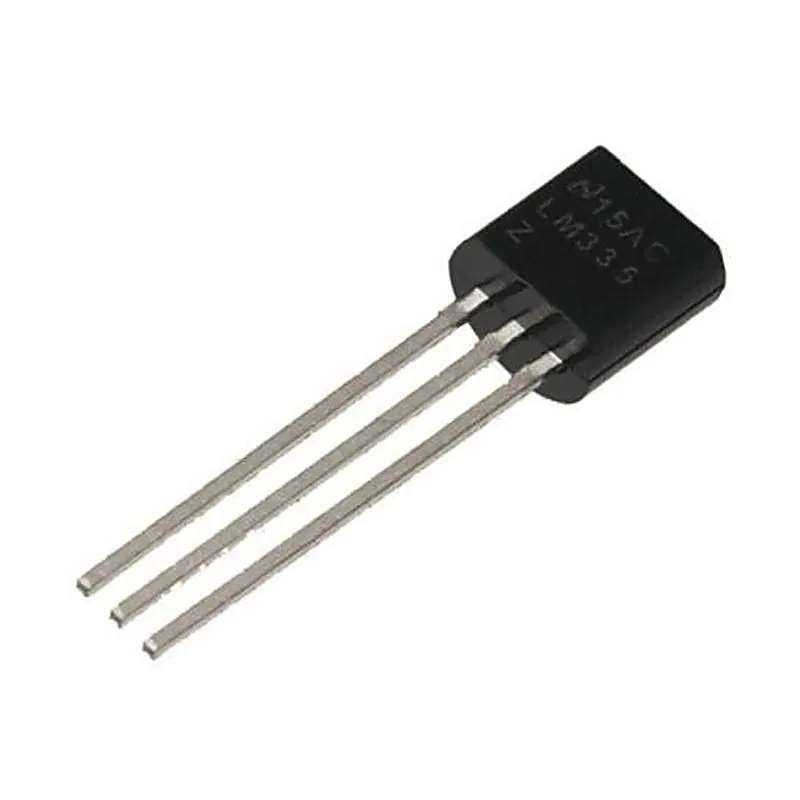

LM335 - Temperature Sensor
LM335 - Temperature Sensor
The LM335 are precision temperature sensors which can be easily calibrated. They operate as a 2-terminal Zener and the breakdown voltage is directly proportional to the absolute temperature at 10mV/°K. The circuit has a dynamic impedance of less than 1Ω and operates within a range of current from 45
+ 18% GST (added at checkout)
In stock — 614 units ready
- Directly calibrated in °K
- 1°C initial accuracy
- Operates from 450µA to 5mA
- Less than 1Ω dynamic impedance
- Storage temperature range : -65 to +150
- Max Forward Current : 15mA
- Max Reverse Current : 10mA
- Max Continuous Operating free-air temperature range : -40 to +100 deg C
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The LM335 are precision temperature sensors which can be easily calibrated. They operate as a 2-terminal Zener and the breakdown voltage is directly proportional to the absolute temperature at 10mV/°K. The circuit has a dynamic impedance of less than 1Ω and operates within a range of current from 450µA to 5mA without alteration of its characteristics. Features:- Directly calibrated in °K 1°C initial accuracy Operates from 450µA to 5mA Less than 1Ω dynamic impedance Specifications:- Storage temperature range : -65 to +150 Max Forward Current : 15mA Max Reverse Current : 10mA Max Continuous Operating free-air temperature range : -40 to +100 deg C Package Includes:- 1 x LM335 - Temperature Sensor
