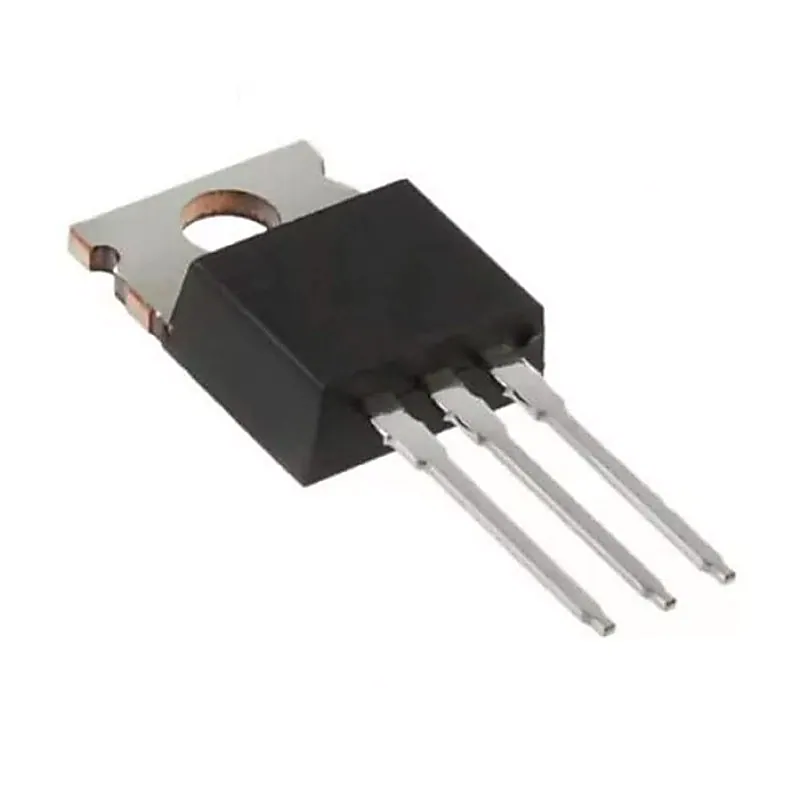

LM337T IC - Variable Negative Voltage Regulator IC

LM337T (LM337) Variable Negative Voltage Regulator The LM137 and LM337-N are adjustable 3-terminal negative voltage regulators capable of supplying −1.5 A or more currents over an output voltage range of −1.25 V to −37 V. It requires only two external resistors to set the output voltage and one output capacitor for frequency compensation. The circuit design has been optimized for excellent regulation and low thermal transients. Further, the LM137 and LM337-N feature internal current limiting, thermal shutdown, and safe area compensation, making it virtually blowout-proof against overloads. The LM137 and LM337-N are ideal complements to the LM117 and LM317 adjustable positive regulators. The LM137 has a wider operating temperature range than the LM337-N and is also offered in military and space-qualified versions. The IC commonly used in Adjustable Lab Voltage generators in combination with the LM317 IC. It can also be used as Current Regulators and negative voltage protection circuits, refer to the datasheet linked below for application circuits. Features:- Adjustable 3-terminal Negative voltage regulator Output voltage can be set to range from -1.25V to -37V Maximum Output current is -1.5A Differential Input and Output Voltage is 40V(max), recommended 15V Maximum output current when voltage difference is 15V is -2.2A Operating junction temperature is 125°C Applications:- Used for Positive voltage regulations Variable power supply Current limiting circuits Reverse polarity circuits Commonly used in Desktop PC, DVD and other consumer products Used in motor control circuits Industrial Power Supplies Factory Automation Systems Building Automation Systems PLC Systems Instrumentation IGBT Drive Negative Gate Supplies Networking Set-Top Boxes Specifications:- Output Voltage Range: −1.25V to −37V Output Current: 1.5A Line Regulation 0.01%/V (Typical) Load Regulation 0.3% (Typical) 77-dB Ripple Rejection 50 ppm/°C Temperature Coefficient Thermal Overload Protection Internal Short-Circuit Current Limiting Protections Package: To-220 Length: 15.1mm Width: 10.16mm Height: 4.45mm Approx Weight: 4gm Package Includes:- 1 x LM337 IC - Variable Negative Voltage Regulator IC
