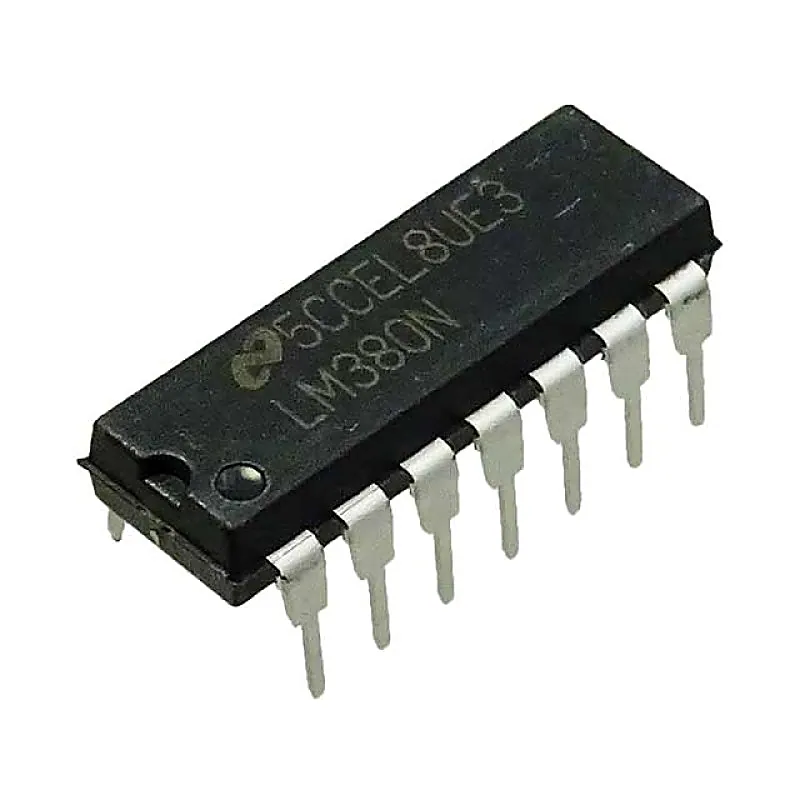

LM380 2.5-Watt Audio Power Amplifier IC DIP-14 Package

The LM380 is a power audio amplifier for consumer application. In order to hold system cost to a minimum, gain is internally fixed at 34 dB. A unique input stage allows inputs to be ground referenced. The output is automatically self centering to one half the supply voltage. The output is short circuit proof with internal thermal limiting. The package outline is standard dual-in-line. A copper lead frame is used with the center three pins on either side comprising a heat sink. This makes the device easy to use in standard p-c layout. Uses include simple phonograph amplifiers, intercoms, line drivers, teaching machine outputs, alarms, ultrasonic drivers, TV sound systems, AM-FM radio, small servo drivers, power converters, etc. Features:- Voltage Gain Fixed at 50 Low Quiescent Power Drain High Peak Current Capability Wide Supply Voltage Range Input Referenced to GND High Input Impedance Low Distortion Quiescent Output Voltage at Half of Supply Voltage Datasheet:- LM380 IC Datasheet
