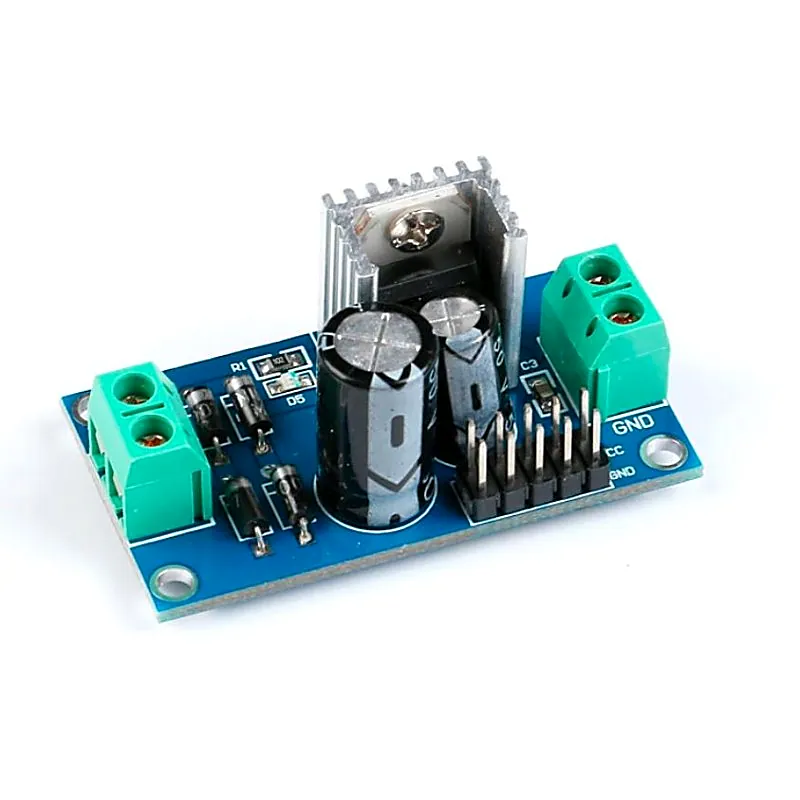

LM7805 5V DC / AC Three Terminal Voltage Regulator Power Module
LM7805 5V DC / AC Three Terminal Voltage Regulator Power Module
This power supply module integrates rectification, filter components and voltage regulator chip. It inputs AC or DC voltage within a certain range, can regulate the output DC voltage. Features:- Easy to use Overheat protection Overcurrent protection Five Bolt Holes For Easy Installation Applications
+ 18% GST (added at checkout)
In stock — 5 units ready
- Easy to use
- Overheat protection
- Overcurrent protection
- Five Bolt Holes For Easy Installation
- DIY power supply
- Power monitoring
- Experimental power supply
- Camera power
- Automotive power supply
- Communications equipment supply
- Input Voltage (Withstand Voltage):
- DC: 8 ~ 15V
- AC: 6 ~ 12V
- Output characteristics:
- Load regulation: 100mV
- Quiescent Current: 8mA
- Output noise voltage: 42uV
- Input and output pressure: 2V
- Output impedance: 15m
- Peak current: 1.5A
- Size: 43mm x 20mm (L*W)
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This power supply module integrates rectification, filter components and voltage regulator chip. It inputs AC or DC voltage within a certain range, can regulate the output DC voltage. Features:- Easy to use Overheat protection Overcurrent protection Five Bolt Holes For Easy Installation Applications:- DIY power supply Power monitoring Experimental power supply Camera power Automotive power supply Communications equipment supply Specification:- Input Voltage (Withstand Voltage): DC: 8 ~ 15V AC: 6 ~ 12V Output characteristics: Load regulation: 100mV Quiescent Current: 8mA Output noise voltage: 42uV Input and output pressure: 2V Output impedance: 15m Peak current: 1.5A Size: 43mm x 20mm (L*W) Package Includes:- 1 x LM7805 5V DC / AC Three Terminal Voltage Regulator Power Module
