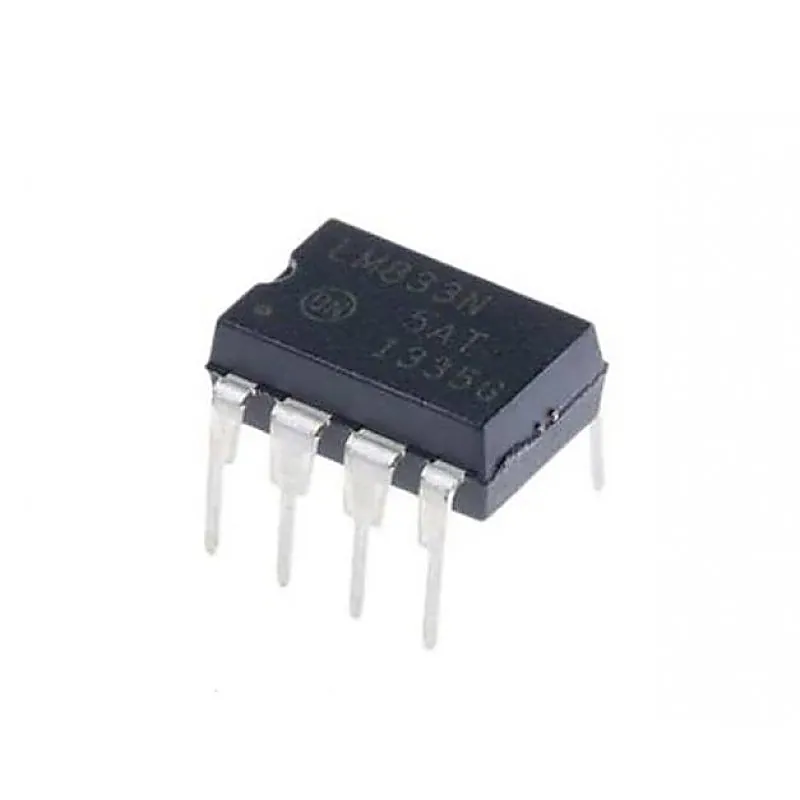

LM833 Dual Low Noise Audio Op-Amp IC DIP-8 Package

The LM833 is a standard low−cost monolithic dual general−purpose operational amplifier employing Bipolar technology with innovative high−performance concepts for audio systems applications. With high frequency PNP transistors, the LM833 offers low voltage noise (4.5 nV/ Hz ), 15 MHz gain bandwidth product, 7.0 V/s slew rate, 0.3 mV input offset voltage with 2.0 V/°C temperature coefficient of input offset voltage. The LM833 output stage exhibits no dead−band crossover distortion, large output voltage swing, excellent phase and gain margins, low open loop high frequency output impedance and symmetrical source/sink AC frequency response. Features:- • Low Voltage Noise: 4.5 nV/ Hz • High Gain Bandwidth Product: 15 MHz • High Slew Rate: 7.0 V/s • Low Input Offset Voltage: 0.3 mV • Low T.C. of Input Offset Voltage: 2.0 V/°C • Low Distortion: 0.002% • Excellent Frequency Stability • Dual Supply Operation • NCV Prefix for Automotive and Other Applications Requiring Site and Change Controls • These Devices are Pb−Free and are RoHS Compliant Specification:- Parameter Symbol Value Unit Supply Voltage (VCC to VEE) VS 36 V Input Differential Voltage Range VIDR 30 V Input Voltage Range VIR ±15 V Output Short Circuit Duration Tsc Indefinite Operating Ambient Temperature Range TA −40 to +85 °C Operating Junction Temperature TJ 150 °C Storage Temperature Tstg −60 to +150 °C ESD Protection at any Pin − Human Body Model − Machine Model Vesd 600 V 200 Maximum Power Dissipation PD 500 m W Related Document:- LM833 IC Datasheet
