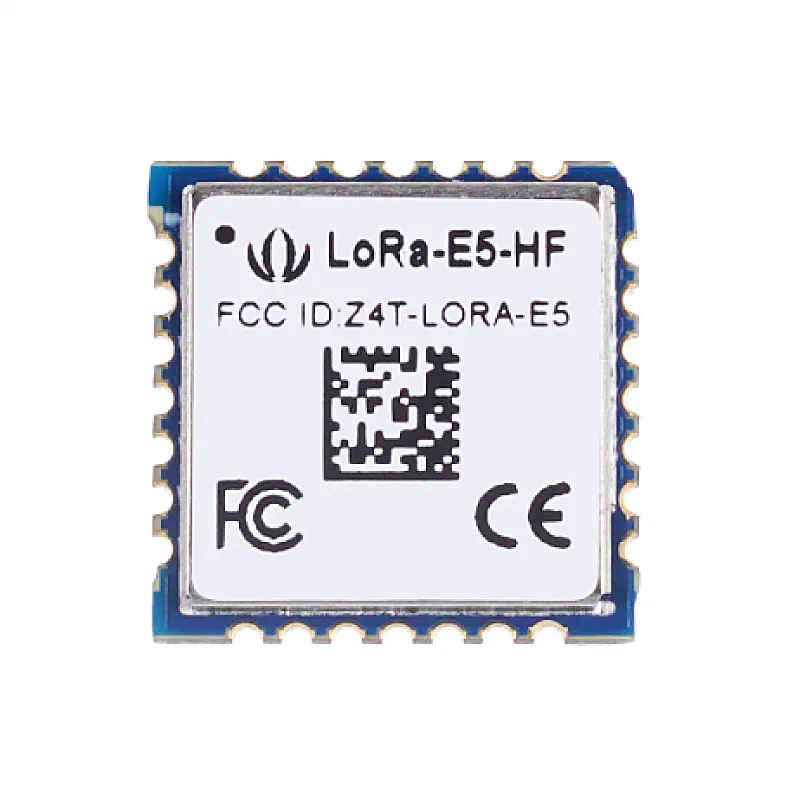

LoRa-E5 STM32WLE5JC Module Embedded SX126X And MCU

This LoRa E5 module is designed with industrial standards, hence its highly suitable to be used in designing industrial IoT products. Lora-E5 is a low-cost, ultra-low power, extremely compact, and high-performance LoRaWAN Module designed by Seeed Technology Co., Ltd. It contains ST system-level package chip STM32WLE5JE, and STM32WLE5 is the first SoC integrated with the combo of LoRa RF and MCU chip. This module is also embedded with ARM Cortex M4 ultra-low-power MCU and LoRa SX126X and therefore supports (G)FSK mode and LoRa. Applications: Wireless Meter Reading IoT Nodes Sensor Network Other Low Power Wider Area IoT Scenarios Note: For More Details Please Refer Attached Datasheet Useful Links: LoRa-E5 Kicad Library LoRa-E5 HF 3D File LoRa-E5 Eagle Library Features: Ultra-low Power Consumption: as low as 2.1uA sleep current (WOR mode) Extremely Compacted Size: 12mm * 12mm * 2.5mm 28 pins SMT High Performance: TXOP=22dBm@868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW Long Distance Use: 158dB link budget Wireless Connectivity: Embedded LoRaWAN protocol, AT command, support global LoRaWAN frequency plan Worldwide Compatibility : wide frequency range; EU868/US915/AU915/AS923/KR920/IN865 Package Includes: 1 x LoRa-E5 STM32WLE5JC Module Embedded SX126X And MCU Attachments : Download Download Download
