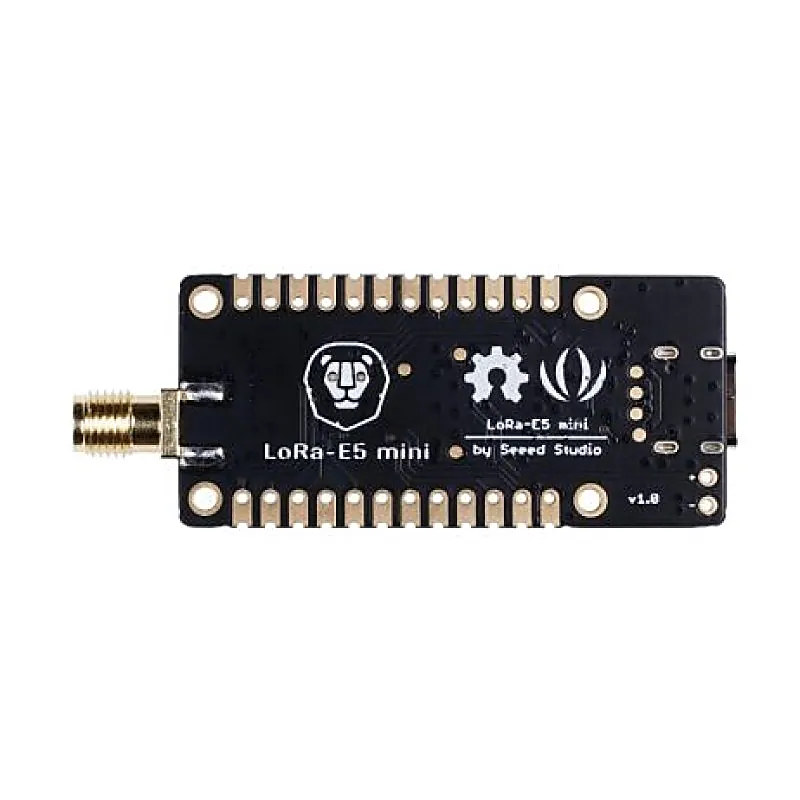

LoRaE5 mini (STM32WLE5JC)
LoRaE5 mini (STM32WLE5JC)
LoRa-E5 mini is a compacted-sized development board suitable for the rapid testing and building of small-size prototyping and helps you design your ideal LoRaWAN wireless IoT device with a long-distance transmission range. LoRa-E5 mini is embedded withLoRa-E5 STM32WLE5JC Module, which delivers the w
+ 18% GST (added at checkout)
In stock — 6 units ready
- Full GPIOs led out from the Lora-E5 STM32WLE5JC
- Global LoRaWAN and LoRa frequency plan supported
- Long-distance transmission range to 10km (ideal value in open area)
- Mini and compact size, suitable for rapid testing and building small size prototype
- Convenient RESET and BOOT buttons on board
- CurrentLoRa-E5 module sleep current as low as 2.1uA (WOR mode)
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
LoRa-E5 mini is a compacted-sized development board suitable for the rapid testing and building of small-size prototyping and helps you design your ideal LoRaWAN wireless IoT device with a long-distance transmission range. LoRa-E5 mini is embedded withLoRa-E5 STM32WLE5JC Module, which delivers the world-first combo of LoRa RF and MCU chip into one single tiny chip and is FCC and CE certified. It is powered by ARM Cortex-M4 core and Semtech SX126X LoRa chip and supports LoRaWAN protocol on the worldwide frequency and (G)FSK, BPSK, (G)MSK, and LoRa modulations. Pinout: Features: Full GPIOs led out from the Lora-E5 STM32WLE5JC Global LoRaWAN and LoRa frequency plan supported Long-distance transmission range to 10km (ideal value in open area) Mini and compact size, suitable for rapid testing and building small size prototype Convenient RESET and BOOT buttons on board CurrentLoRa-E5 module sleep current as low as 2.1uA (WOR mode) Package Includes : 1 x LoRaE5 mini (STM32WLE5JC)
