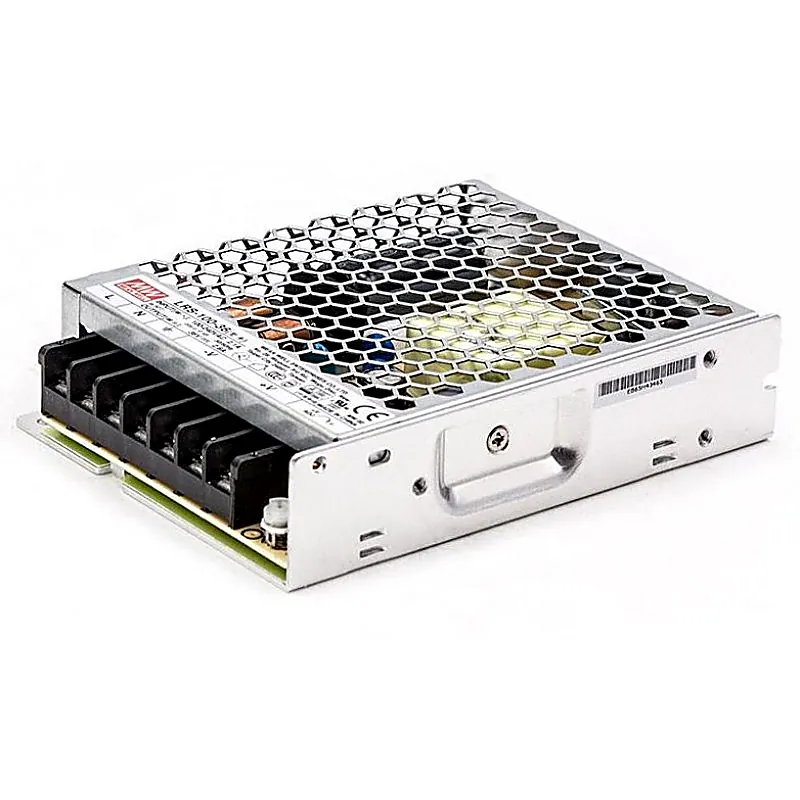

LRS-100-36 Mean Well SMPS - 36V 2.2A - 100.8W Metal Power Supply

Key Specifications:- Output Voltage 36V Type Enclosed Type Approx. Wattage 100W Features Standard Series LRS(Reliable) Mechanical Form Enclosed Warranty 3 Years Warranty IP Level Non-Waterproof Input Voltage 100-240V auto-select Features:- No load power consumption <0.2W for 35W/50W; <0.3W for 75W/100W Universal AC input / Full range Withstand 300VAC surge input for 5 seconds Ultra compact and 1U low profile Withstand 5G vibration test High operating temperature up to 70oC Protections: Short circuit / Overload / Over voltage Cooling by free air convection Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances Operating altitude up to 5000 meters High efficiency, long life and high reliability LED indicator for power on Low cost 3 years warranty Specifications:- AC input voltage range 85~264VAC; 120~370VDC AC inrush current (max.) Cold start, 50A at 230VAC DC adjustment range ±10% by potentiometer Overload protection Range 110%~150% Overload protection Type Hiccup mode, auto-recovery Over voltage protection Range 115%~135% rated output voltage Over voltage protection Type Shut down o/p voltage, re-power on to recover Withstand voltage 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute Working temperature -30~+70°C (refer to output derating curve) Safety standards UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved EMC standards EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254 Connection 7P/9.5mm pitch terminal block Dimension (LxWxH) 129x 97x 30 Related Documents:- LRS-100 Datasheet LRS-100-36 Test Report CE Certificate (LRS-100) UL Certificate (LRS-100) CB(60335) Certificate (LRS-100) CB(60950) Certificate (LRS-100) TUV(60335) Certificate (LRS-100) TUV(60950) Certificate (LRS-100) TUV(61558) Certificate (LRS-100) EMC Certificate(LRS-100)
