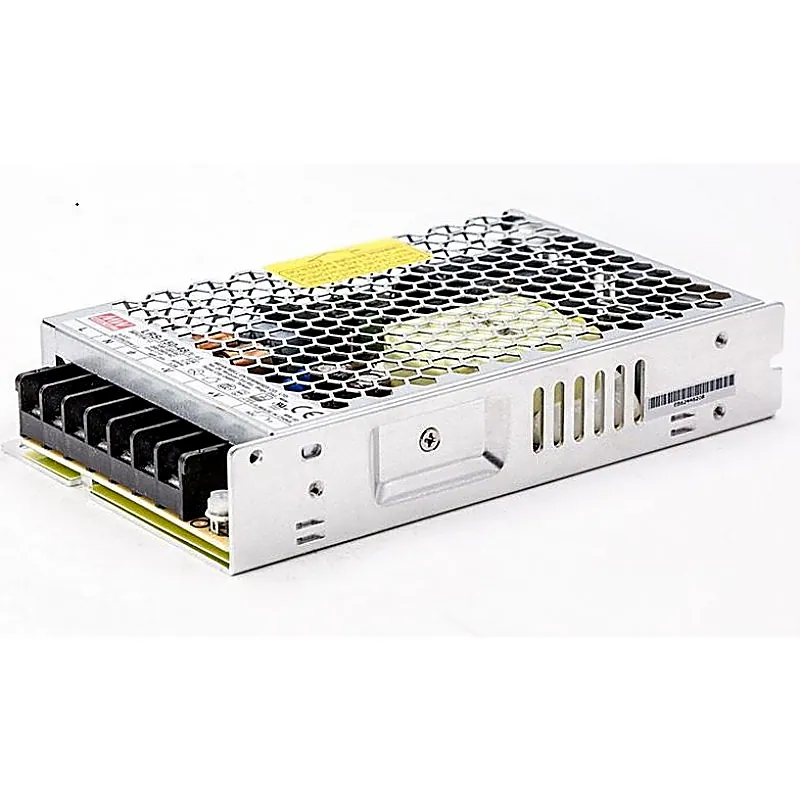

LRS-150-48 Mean Well SMPS - 48V 3.3A - 158.4W Metal Power Supply

Key Specifications:- Output Voltage 48V Type Enclosed Type Approx. Wattage 158W Features Standard Series LRS(Reliable) Mechanical Form Enclosed Warranty 3 Years Warranty IP Level Non-Waterproof Input Voltage 115V/230V by switch Features:- No load power consumption <0.5W for 150W; <0.75W for 200W/350W AC input selectable by switch Withstand 300VAC surge input for 5 seconds Ultra compact and 1U low profile Withstand 5G vibration test High operating temperature up to 70oC Protections: Short circuit / Overload / Over voltage / Over temp. Cooling by free air convection (150W/200W); forced air cooling by built-in DC fan (350W) Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances (150W) Operating altitude up to 5000 meters LED indicator for power on High efficiency, long life and high reliability Low cost 3 years warranty Specifications:- AC input voltage range 115 / 230VAC by switch AC inrush current (max.) Cold start, 60A at 230VAC DC adjustment range ±10% by potentiometer Overload protection Range 110%~140% Overload protection Type Hiccup mode, auto-recovery Over voltage protection Range 115%~145% rated output voltage Over voltage protection Type Shut down o/p voltage, re-power on to recover Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC Working temperature -30~+70°C (refer to output derating curve) Safety standards UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved EMC standards EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254 Connection 7P/9.5mm pitch terminal block Dimension (LxWxH) 159x 97x 30 Related Documents:- LRS-150 Datasheet LRS-150-48 Test Report CE Certificate (LRS-150) UL Certificate (LRS-150) CB(60335) Certificate (LRS-150) CB(60950) Certificate (LRS-150) TUV(60335) Certificate (LRS-150) TUV(60950) Certificate (LRS-35) TUV(61558) Certificate (LRS-150) EMC Certificate(LRS-150)
