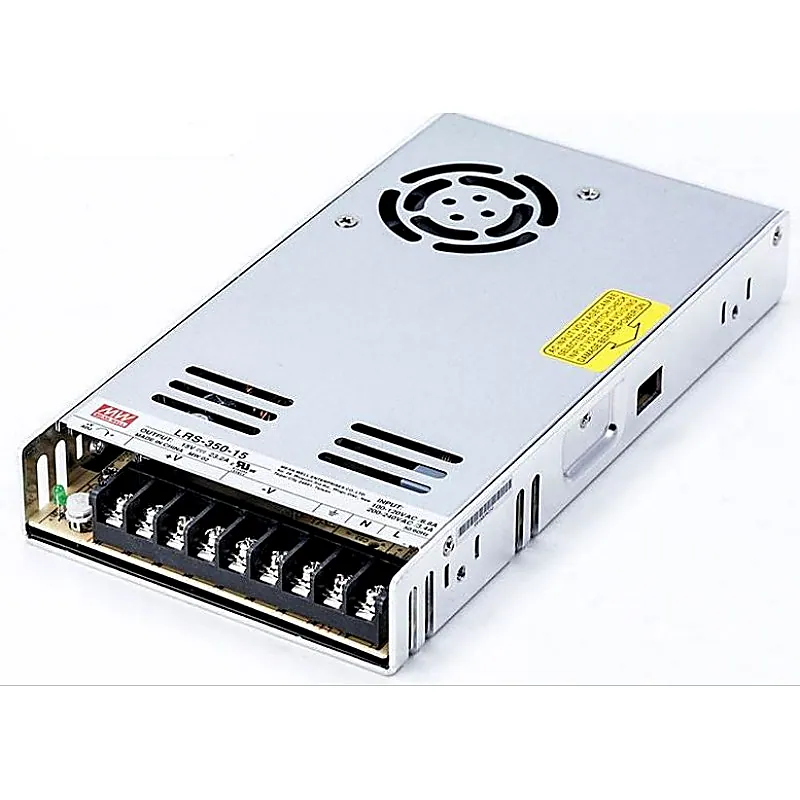

LRS-350-15 Mean Well SMPS - 15V 23.2A - 348W Metal Power Supply

Key Specifications:- Output Voltage 15V Type Enclosed Type Approx. Wattage 348W Features Standard Series LRS(Reliable) Mechanical Form Enclosed Warranty 3 Years Warranty IP Level Non-Waterproof Input Voltage 115V/230V by switch Features:- No load power consumption <0.5W for 150W; <0.75W for 200W/350W AC input selectable by switch Withstand 300VAC surge input for 5 seconds Ultra compact and 1U low profile Withstand 5G vibration test High operating temperature up to 70oC Protections: Short circuit / Overload / Over voltage / Over temp. Cooling by free air convection (150W/200W); forced air cooling by built-in DC fan (350W) Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances (150W) Operating altitude up to 5000 meters LED indicator for power on High efficiency, long life and high reliability Low cost 3 years warranty Specifications:- AC input voltage range 115 / 230VAC by switch AC inrush current (max.) Cold start, 60A at 230VAC DC adjustment range ±10% by potentiometer Overload protection Range 110%~140% Overload protection Type Hiccup mode, auto-recovery Over voltage protection Range 115%~145% rated output voltage Over voltage protection Type Shut down o/p voltage, re-power on to recover Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC Working temperature -25~+70°C (refer to output derating curve) Safety standards UL60950-1 approved EMC standards Design refer to EN55022 class A Connection 9P/9.5mm pitch terminal block Dimension (LxWxH) 215x 115x 30 Related Documents:- LRS-350 Datasheet LRS-350-15 Test Report UL Certificate (LRS-350) CB Certificate (LRS-350) CE Certificate (LRS-350)
