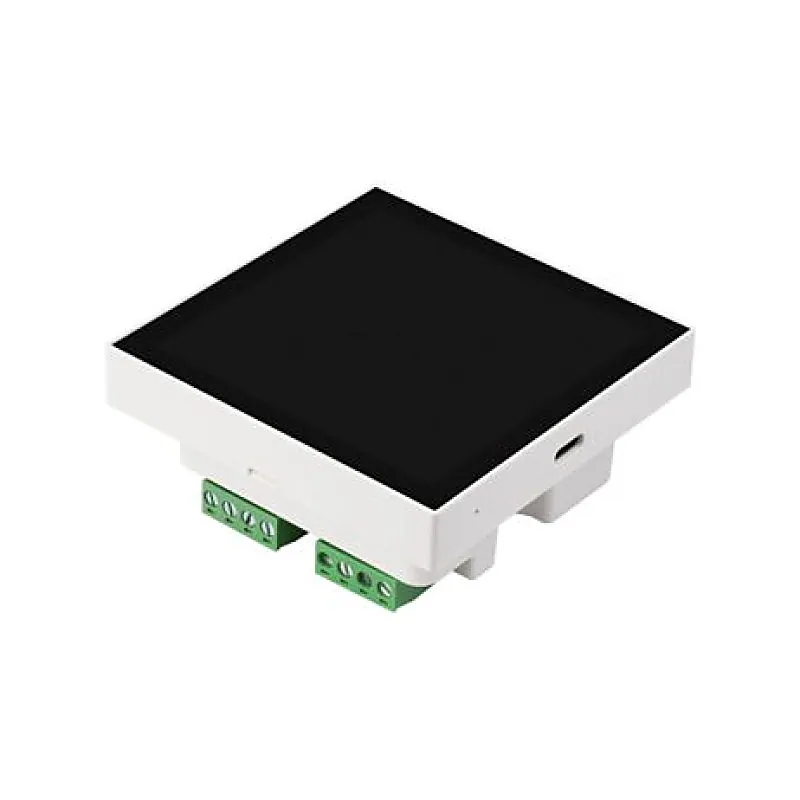

Luckfox Core1106 RV1106G2 Smart 86 Box Development Board without wifi

The Luckfox Core1106 Smart 86 Box Development Board is a compact, powerful, and reliable embedded development platform designed for smart home control and industrial automation applications. Built on the RV1106G2/G3 processor with integrated NPU and ISP, it offers a robust compute capacity of up to 1TOPS. This board features a high-quality 720720 IPS touchscreen with 5-point capacitive touch and supports RS485, dual relay output, and audio I/O, making it ideal for IoT interface, smart switches, and HMI projects. This version does not include WiFi/Bluetooth. Features: Processor: RV1106G2 (0.5TOPS) / RV1106G3 (1TOPS), ARM Cortex-A7 core Memory: 128MB / 256MB DDR3L Display: 4 720720 IPS with 170 wide view and capacitive touch Communication: RS485 interface with built-in isolation Audio: Onboard mic and 1W speaker support Relay Control: 2-channel relay with optocoupler isolation Connectivity: 10/100M RJ45 Ethernet (wired only, no WiFi) Design: Modular 86-type wall box compatible structure Package Includes: 1 x Luckfox Core1106 RV1106G2 Smart 86 Box Development Board without wifi
