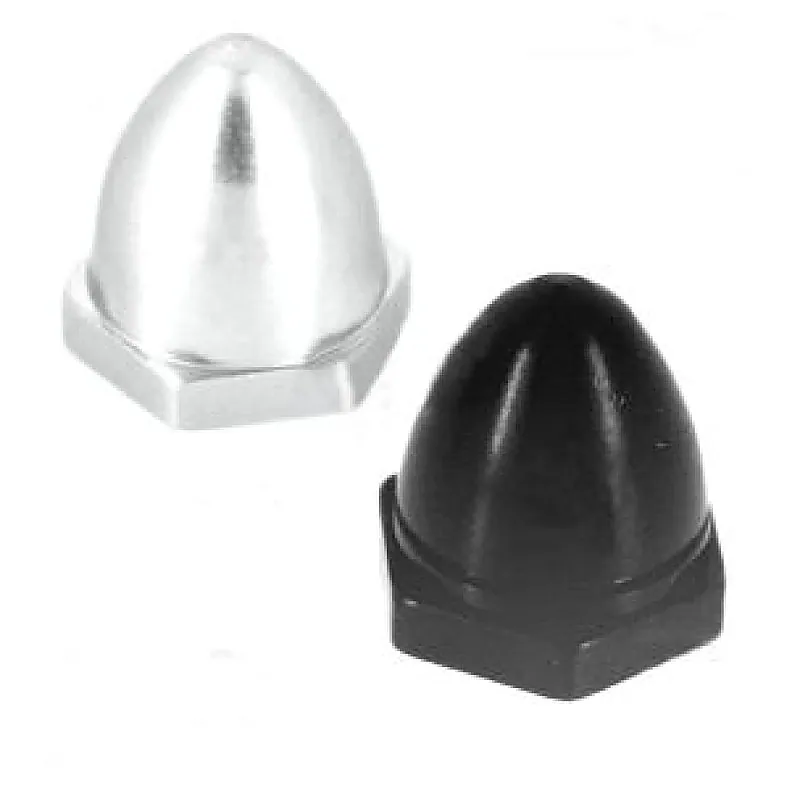

M5 Set of 2 Propeller Nut Cap CW CCW For Brushless DC Motor

ThisM5 Set of 2 Propeller Nut Cap CW CCW For Brushless DC Motor is the set of two different i.e CW and CCW Nut Cap for 1306 and 3100 brushless motor to be fitted above the propeller. Prop nuts of different directions usually come in different colors, such as black and silver for better user-friendliness. Somemini quad motorsare labeled CW and CCW, and it can cause a hell of confusion for a lot of people in this hobby including experienced quadcopter builders. Basically, CW (clockwise) and CCW (counterclockwise) motors are still the same motors, apart from the prop shaft threads which have opposite direction.That means for aCCW motor, the prop nut is secured by turningclockwise. And for CW motors, the prop nuts need to be rotated anti-clockwise in order to fasten. Advantages of having different CW and CCW threads So why have 2 different shaft threads and making it so confusing? They call this Self-locking because on a quadcopter we have 2 motors spinning clockwise direction and the other two spinning counter clockwise. By using threads that are the opposite to motor spin direction, the prop nutsautomatically lock themselves down and wont come loose. However, it becomes difficult to source spare prop nuts for both threads. And it also makes it confusing to which way we should turn to remove the prop nuts when changing propellers. Prop nuts are basically M5 nylon nuts. In hardware stores, they are referred to as right handed and left handed thread as opposed to CW and CCW. Identify CW and CCWThreads So basically if you can fasten the prop nut clockwise, then you have a CCW motor, for which you should get the Right handed thread nut (standard thread). For CW motors, go for the Left-hand thread nuts (reverse thread) Note: Package does not contain any Motor. Package Includes : 1 xM5 Propeller Prop Nut Cap CCW (Silver). 1 xM5 Propeller Prop Nut Cap CW (Black).
