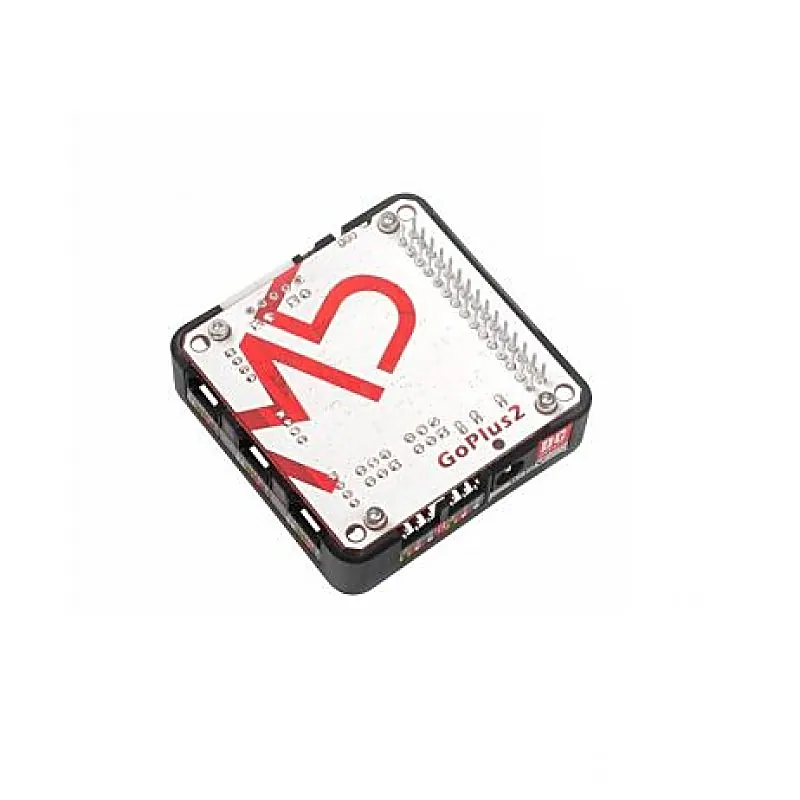

M5 Stack Goplus2 DC Motor and Servo Driver Module (STM32F0)

GoPlus2 is a stackable multi-functional motor and servo control module. The master control adopts STM32F030C8T6. The module is equipped with a 2-way DC motor drive interface and a 4-way servo drive interface. Three PORT-B interfaces(Analog Input, Digital Output, Digital Input) can be expanded. M5 Go Plus 2 comes with a built-in 500mAh battery and support infrared (IR) transmission and reception. In order to meet the requirements of the multi-channel interface power supply at the same time, a DC power interface is provided for the external power supply, the battery can be charged through the M5Core with USB-C. Application: Actuator/motor driver Acquisition and control of multiple input and output signals Infrared controller DIY Toy base Features: Dual DC motor interface Four Servo interface IR transmit & receive Three expand PORT B Based On STM32F030C8T6 Built-in 500mAh battery Package Includes: 1x GoPlus2 Module 2x DC Motor Cable Attachments : Download
