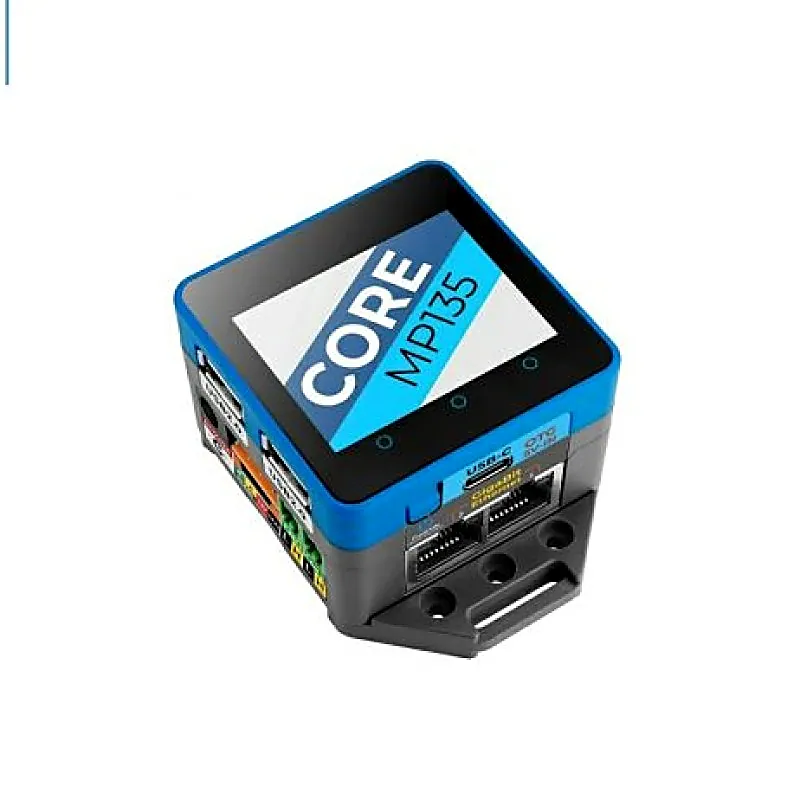

M5Stack Core MP135 w/ STM32MP135D

CoreMP135 is an integrated Linux industrial control host based on the STM32MP135DAE7 chip. It features a single-core Arm Cortex-A7 processor with a frequency of up to 1GHz and is equipped with 4Gb DDR3L SDRAM for running memory. The device boasts a rich array of functional interfaces: it has 2 GbE ports, 1 HD video output, 2 USB 2.0-A ports, 1 USB-C port (supporting OTG and power supply), a MicroSD card slot, 2 CAN FD interfaces, and 1 PWR485 interface (9~24V power input + RS485), along with 2 Grove (I2C & UART) interfaces. In terms of human-machine interaction, it features a 2.0-inch IPS capacitive touch screen and a 1W speaker (16 bits I2S driven). The device is designed for low power consumption, utilizing an AXP2101 power management chip and an integrated RTC (BM8563) for scheduled wake-up and sleep functions, and supports a rechargeable battery. It includes a DC power socket supporting an external DC12V@2A power supply. The host comes with a MicroSD card preloaded with Debian system, ready to use upon booting. Suitable for various installation scenarios, the devices bottom is equipped with a DIN rail base plate for easy wall mounting and screw fixing. It is applicable in advanced industrial automation, smart home and multimedia entertainment devices, industrial IoT edge gateways, and as a central hub for robot motion control. Applications: Automation in Industry Smart Home Industrial IoT Edge Gateway Education and development Robot motion center controller Features : STM32MP135DAE7@Arm Cortex-A7@1GHz Linux Standard Platform Rich peripheral interfaces (CAN\RS485\ gigabit network port, etc.) 2.0 touch screen PMU Audio Output MicroSD and 4Gb DDR3L SDRAM running memory M5BUS&PORT A / C DIN Rail rails are easy to install Power Amplifier: NS4168 (mono Class D power amplifier) I2S serial digital audio input Supports a wide range of sampling rates: 8kHz~96kHz Ethernet: RTL8211F (supports up to 1Gbps data rate) 2x RJ45 USB Hub Interface: GL852G (2x USB2.0) 1x USBC (Support OTG and power supply) Package Includes: 1 x CoreMP135 1 x M3 hex wrench 1x VH3.96-4P 2 x Terminal 2.54mm-2P(green) 1 x MicroSD Card(already installed in the machine) 1 x Specification
