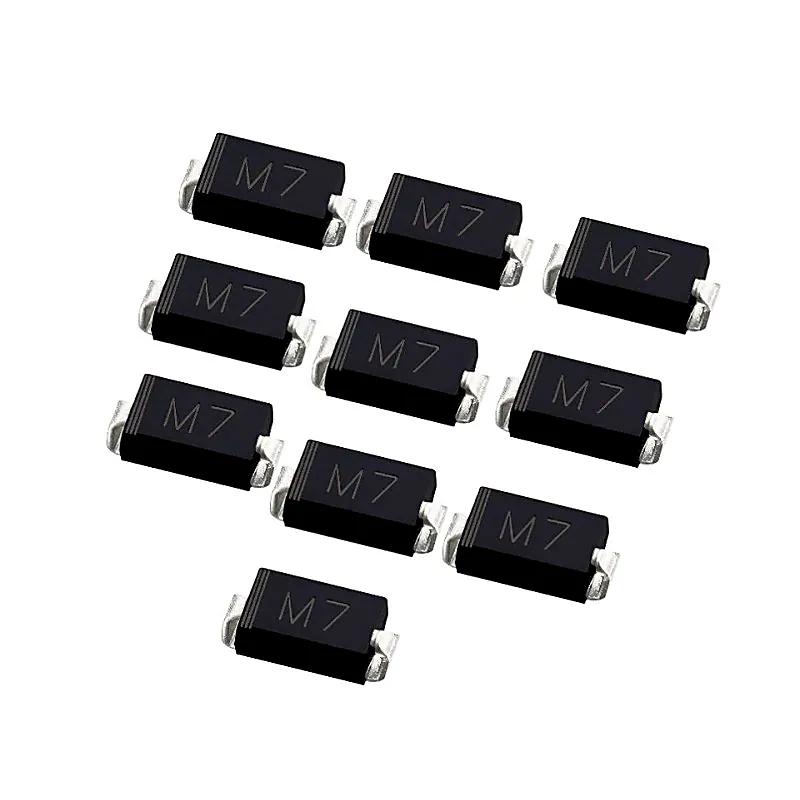

M7 (1N4007) 1A Diode (SMD Package) - 10 Pieces Pack

The M7(1N4007) Diode is a M7 Surface Mount General Rectifier and has a Plastic Passivation Junction Reverse Voltage of 50 to 1000 Volts with Forward Current of 1.0 Ampere. The following features are: • The plastic package carries underwriters Laborator • Flammability Classification 94V-O • For surface mounted applications • Low reverse leakage • Built in strain relief, ideal for automated placement • High forward Surge current capability • High temperature soldering guaranteed 250010 seconds at terminals • Low forward voltage drop • High current capability • Easy pick and place • High surge current capability • Plastic material used carries Underwriters Laboratory Classification 94V-0 Mechanical Data:- • Case : JEDEC DO-214AC molded plastic body • Terminals Solder plated per MIL-STD-7SO, Method • Polarity : Color band denotes cathode end • Mounting Position : Any • Weight : 0.003 ounce Specification:- Symbol Parameter Value Units VRRM Peak Repetitive Reverse Voltage 1000 V VRMS Maximum RMS Voltage 700 V VDC Maximum DC Blocking Voltage 1000 V IF(AV) Maximum Average Forward Rectified Current 1 A IFSM Non-Repetitive Peak Forward Surge Current 30 A TJ Operating Junction Temperature Range − 65 to +175 °C Tstg Storage Temperature Range − 65 to +175 °C Related Document:- M7 (1N4007) Diode SMD Data Sheet
