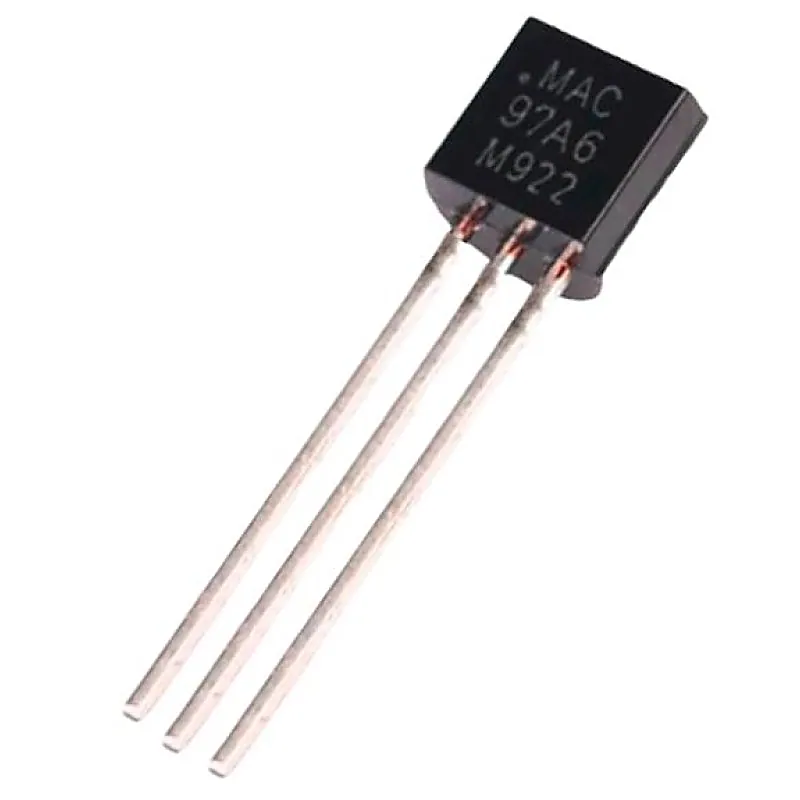

MAC97A 600V - 0.8A Triac
MAC97A 600V - 0.8A Triac
Designed for use in solid state relays, MPU interface, TTL logic and any other light industrial or consumer application. Supplied in an inexpensive TO−92 package which is readily adaptable for use in automatic insertion equipment Features:- One−Piece, Injection−Molded Package Blocking Voltage to 600
+ 18% GST (added at checkout)
In stock — 630 units ready
- One−Piece, Injection−Molded Package
- Blocking Voltage to 600 Volts
- Sensitive Gate Triggering in Four Trigger Modes (Quadrants) for all possible Combinations of Trigger Sources, and especially for Circuits that Source Gate Drives
- All Diffused and Glassivated Junctions for Maximum Uniformity of Parameters and Reliability
- These are Pb−Free Devices
- Maximum Operating Temperature : 125 Deg C
- Mounting Type : Through Hole
- Pin Count : 3
- Model : MAC97A6
- Voltage - Off State : 400 V
- Current - On State : Max 600 mA
- Voltage - Gate Trigger : Max 1.5 V
- Current - Gate Trigger : Max 7 mA
- Current - Hold : Max 10 mA
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Designed for use in solid state relays, MPU interface, TTL logic and any other light industrial or consumer application. Supplied in an inexpensive TO−92 package which is readily adaptable for use in automatic insertion equipment Features:- One−Piece, Injection−Molded Package Blocking Voltage to 600 Volts Sensitive Gate Triggering in Four Trigger Modes (Quadrants) for all possible Combinations of Trigger Sources, and especially for Circuits that Source Gate Drives All Diffused and Glassivated Junctions for Maximum Uniformity of Parameters and Reliability These are Pb−Free Devices Specifications:- Maximum Operating Temperature : 125 Deg C Mounting Type : Through Hole Pin Count : 3 Model : MAC97A6 Voltage - Off State : 400 V Current - On State : Max 600 mA Voltage - Gate Trigger : Max 1.5 V Current - Gate Trigger : Max 7 mA Current - Hold : Max 10 mA Package Includes:- 1 x MAC97A 600V - 0.8A Triac
