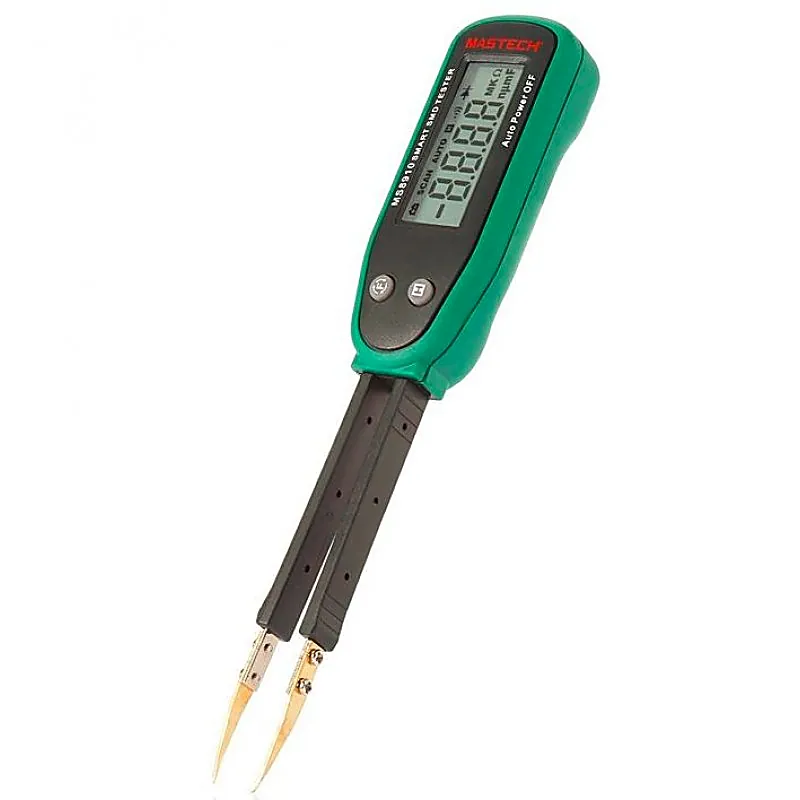

Mastech MS8910 (Original) Smart SMD Tester Meter for Capacitor and Resistor

Mastech MS8910 (Original) Smart SMD Tester Meter for Capacitor and Resistor

This smart SMD tester from Mastech is essentially a pair of multimeter tweezers. This allows you to troubleshoot circuits with small SMD parts without having to fumble with large probes or long wires. Test resistors, capacitors and diodes one-handed! Features:- Display 3000 counts Auto Ranging Auto

+ 18% GST (added at checkout)

In stock — 61 units ready

• Display 3000 counts
• Auto Ranging
• Auto Power Off
• Data Hold
• Low Battery Display
• Auto Scanning
• Diode Check Open Voltage 2.8V
• Diode Testing Current 2mA
• Continuity Buzzer <30Ω
• Brand : Mastech
• Model No: MS8910 / SMD TESTER HTC
• Type of Product: SMD Tester
• Resistance Accuracy: ±2%±5
• Display: 3 2/3 Digit Count: 3000
• Capacitance Accuracy: ±5%±5
• Resistance : Range 300 ohm to 30M ohm
• Capacitance : Range 3nf to 30mf
• Diode check : Open Voltage 2.8V, Testing Current 2mA
• Power supply 3V CR2032 battery
• Size : 175 x 32 x 20 mm
• Weight : 48gm
• Safety rating : CE(EMC)RoHS
