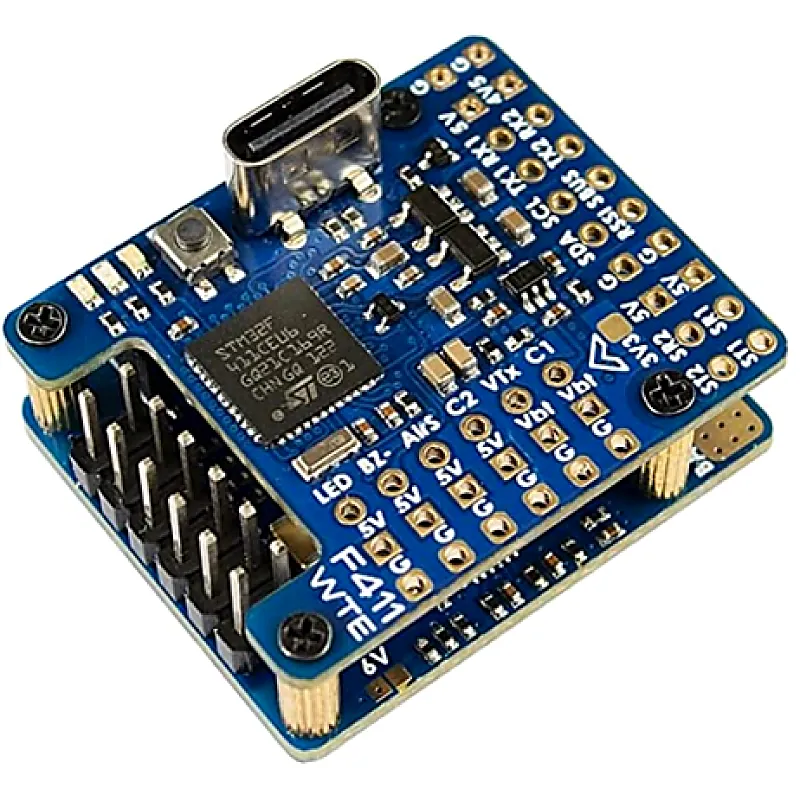

Matek Mateksys FC F411-WTE Compact Flight Controller

Matek Mateksys FC F411-WTE Compact Flight Controller & BEC 5V Output Built-in 2-6S ESC 78A Current Senor For iNAV RC Drone Wing FC Firmware INAV Target: MATEKF411SE PDB Input voltage range: 6~30V (2~6S LiPo) 2x ESC power pads Battery Voltage Sensor: 1:10 (Scale 1100) Current Senor: 78A, 3.3V ADC, Scale 423 BEC 5V output Designed for Flight controller, Receiver, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed module Continuous current: 2 Amps, Max.3A(5seconds/minute) BEC Vx output Designed for Servos Voltage adjustable, 5V Default, 6V option Continuous current: 3.5 Amps, Max.5A(5seconds/minute) BEC 3.3V output Designed for Baro / Compass module/OLED and Spektrum RX Linear Regulator Continuous current: 200mA Physical Mounting: 24 x 24mm, 2mm Dimensions: 28 x 28 x 14 mm Weight: 8.5g Features: MCU: 100MHz STM32F411CEU6 IMU: MPU6000 (SPI) Baro: BMP280 (I2C) OSD: AT7456E (SPI) Blackbox: No 2x Parts 2x Softserial-Tx 2x Motors, 4x Servos outputs 1x I2C 4x ADC (VBAT, Current, RSSI, AirSpeed) 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red) Switchable Dual Camera Inputs TR/SA VTX control: Yes WS2812 Led control: Yes Beeper output: Yes RSSI: Yes Voltage divider for Analog Airspeed sensor: Yes Package Includes: 1 xMatek MateksysF411-WTE Compact Flight Controller Attachments : Download
