Mauch 017: PL 4-6S BEC 25.35V 112.0V
Mauch 017: PL 4-6S BEC 25.35V 112.0V

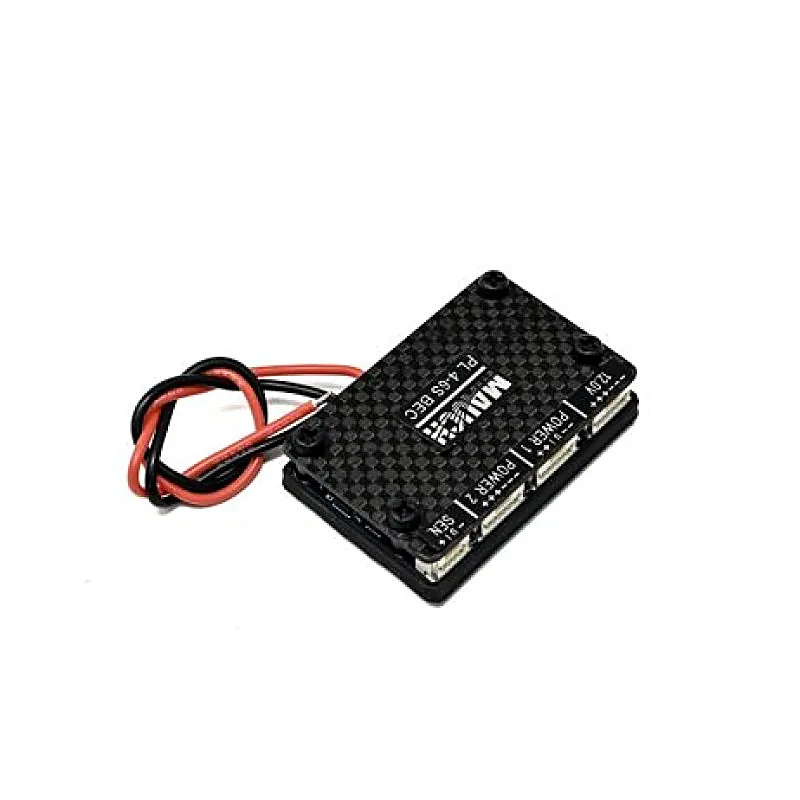

Mauch 017: PL 4-6S BEC 25.35V 112.0V .This looks like a detailed product specification for a BEC (Battery Elimination Circuit) or a Power Distribution Board used in unmanned aerial vehicles (UAVs), drones, or similar systems. It outlines the power input and output features, as well as included compo
+ 18% GST (added at checkout)
In stock — 1 units ready
- Input Power: Supports 4-6S LiPo battery, max 28V.
- LDO Power Supply: Provides stable 5.00V 0.03V for sensor boards (PL-xxx, PL-Sensor Hub X2).
- Protection: Includes input polarity protection and TDK capacitors to prevent voltage spikes.
- LED Indicators: 3 blue ON LEDs to indicate power.
- Connectors: Uses Molex Clik-Mate connectors for outputs and cables.
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Mauch 017: PL 4-6S BEC 25.35V 112.0V .This looks like a detailed product specification for a BEC (Battery Elimination Circuit) or a Power Distribution Board used in unmanned aerial vehicles (UAVs), drones, or similar systems. It outlines the power input and output features, as well as included components for the device. Features: Input Power: Supports 4-6S LiPo battery, max 28V. LDO Power Supply: Provides stable 5.00V 0.03V for sensor boards (PL-xxx, PL-Sensor Hub X2). Protection: Includes input polarity protection and TDK capacitors to prevent voltage spikes. LED Indicators: 3 blue ON LEDs to indicate power. Connectors: Uses Molex Clik-Mate connectors for outputs and cables. Package Includes: 1 x Mauch 017: PL 4-6S BEC 25.35V 112.0V 1 x Sensor cable (040) Molex Clik-Mate 4p / L = 150mm
