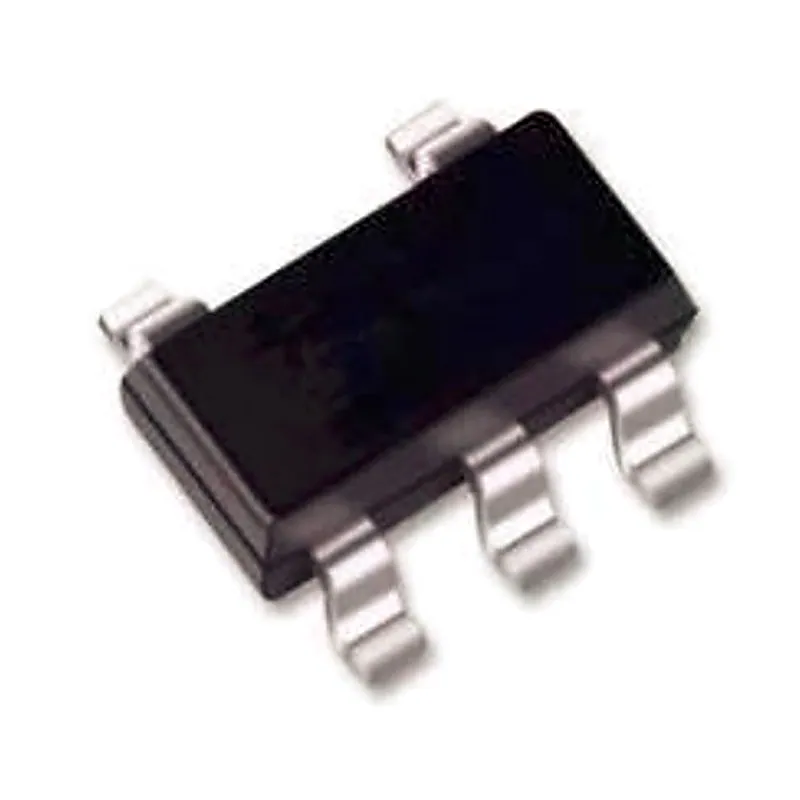

MAX1555 IC - (SMD SOT-23 Package) - Lithium Ion/Polymer USB Battery Charger IC

The MAX1555 charge a single-cell lithium-ion (Li+) battery from both USB* and AC adapter sources. They operate with no external FETs or diodes, and accept operating input voltages up to 7V. On-chip thermal limiting simplifies PC board layout and allows optimum charging rate without the thermal limits imposed by worst-case battery and input voltage. When the MAX1555 thermal limits are reached, the chargers do not shut down, but progressively reduce charging current. The MAX1555 instead features a CHG output to indicate charging status. With USB connected, but without DC power, charge current is set to 100mA (max). This allows charging from both powered and unpowered USB hubs with no port communication required. When DC power is connected, charging current is set at 280mA (typ). No input-blocking diodes are required to prevent battery drain. The MAX1555 are available in 5-pin thin SOT23 packages and operate over a -40°C to +85°C range. Features:- Charge from USB or AC Adapter Automatic Switchover when AC Adapter is Plugged In On-Chip Thermal Limiting Simplifies Board Design Charge Status Indicator 5-Pin Thin SOT23 Package Applications:- Cell Phones Digital Cameras PDAs Wireless Appliances Specification:- Parameter Values DC to GND 0 to +8V DC to BAT 0 to +7V BAT, CHG, POK, USB to GND -0.3V to +7V Continuous Power Dissipation 727mW Operating Temperature Range -40°C to +85°C Junction Temperature Range -40°C to +150°C Storage Temperature Range -65°C to +150°C Lead Temperature +300°C Related Document:- MAX1555 SMD Data Sheet
