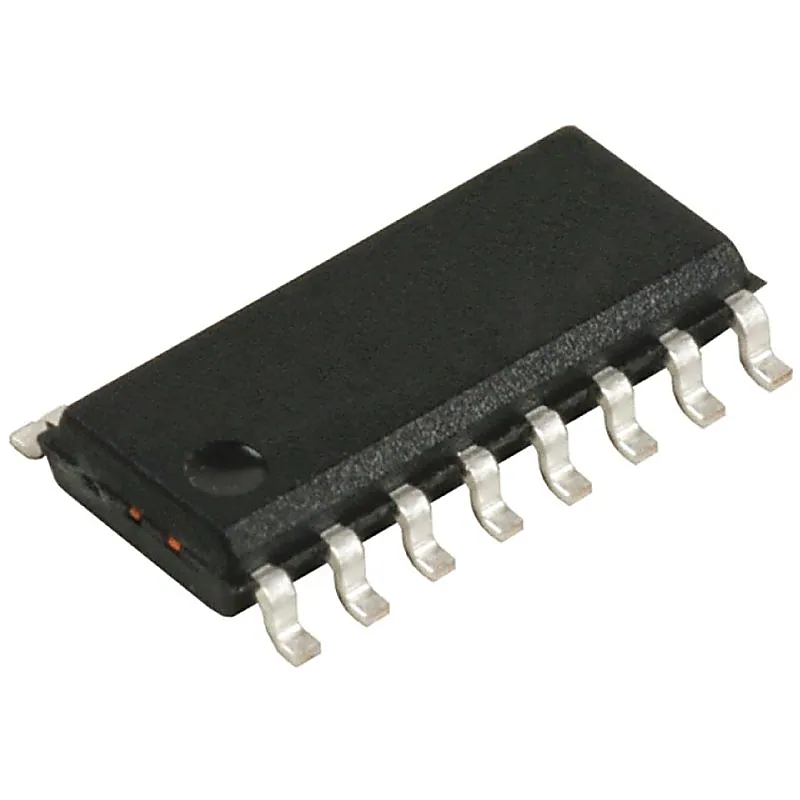

MAX202E - (SMD Package) - RS-232 Interface IC

The MAX202E-MAX213E, MAX232E, and MAX241E are a family of RS-232 and V.28 transceivers with high ±15kV ESD HBM protection and integrated charge pump circuitry for single +5V supply operation. The various combinations of features are outlined in the Selector Guide. The drivers and receivers for all ten devices meet all EIA/TIA232E and CCITT V.28 specifications at data rates up to 120kbps when loaded. The MAX202E/MAX232E come in 16-pin TSSOP, narrow SO, wide SO, and DIP packages. The MAX203E comes in a 20-pin DIP/SO package, and needs no external charge-pump capacitors. The MAX205E comes in a 24-pin wide DIP package, and also eliminates external charge-pump capacitors. Applications:- Battery-Powered Equipment Hand-Held Equipment Portable Diagnostics Equipment Features and Specifications:- Saves Board Space Integrated High ±15kV HBM ESD Protection Integrated Charge Pump Circuitry Eliminates the Need for a Bipolar ±12V Supply Enables Single Supply Operation From +5V Supply 24 pin SSOP Package Saves up to 40% Versus SO Saves Power for Reduced Power Requirements1µA Shutdown Mode Package Includes:- 1 x MAX202E - (SMD Package) - RS-232 Interface IC
