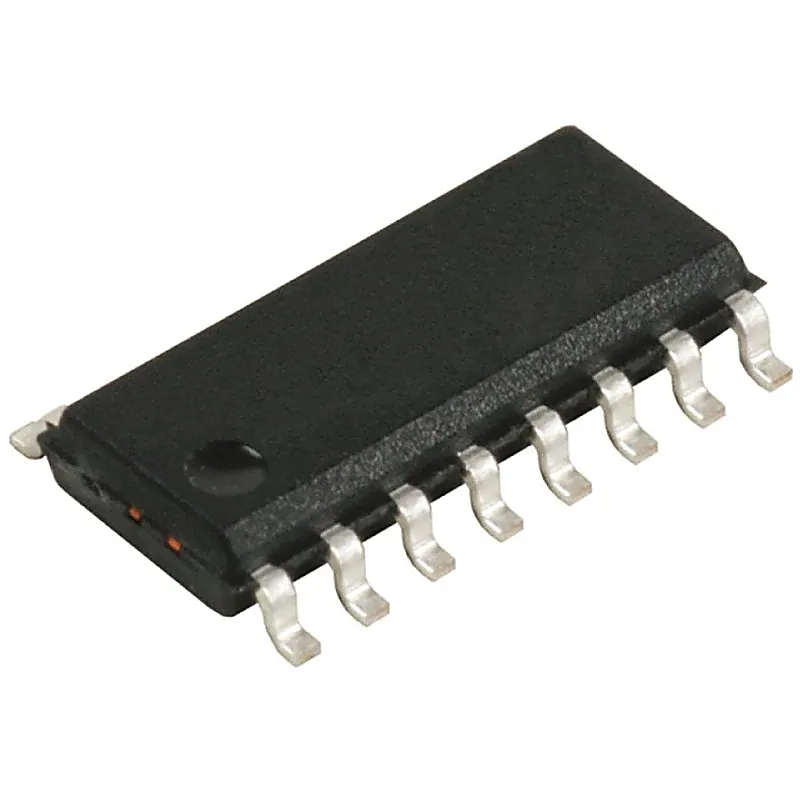

MAX232 IC- (SMD Package) - Serial Programming Driver/Receiver IC

The MAX232E is from the family of RS-232 and V.28 transceivers with high ±15kV ESD HBM protection and integrated charge pump circuitry for single +5V supply operation. The various combinations of features are outlined in the Selector Guide. The drivers and receivers for all ten devices meet all EIA/TIA232E and CCITT V.28 specifications at data rates up to 120kbps when loaded. The MAX232E come in 16-pin TSSOP, narrow SO, wide SO, and DIP packages. Features:- Saves Board Space Integrated High ±15kV HBM ESD Protection Integrated Charge Pump Circuitry-Eliminates the Need for a Bipolar ±12V Supply, Enables Single Supply Operation From +5V Supply Specification:- Parameters Value No. Of RS-232 Drivers 2 No. Of RS-232 Receivers 2 Receivers Active In Shutdown 0 No. Of External Capacitors (µf) 4(1) Low-Power Shutdown No TTL Tristate No Related Document:- MAX232 IC Datasheet
