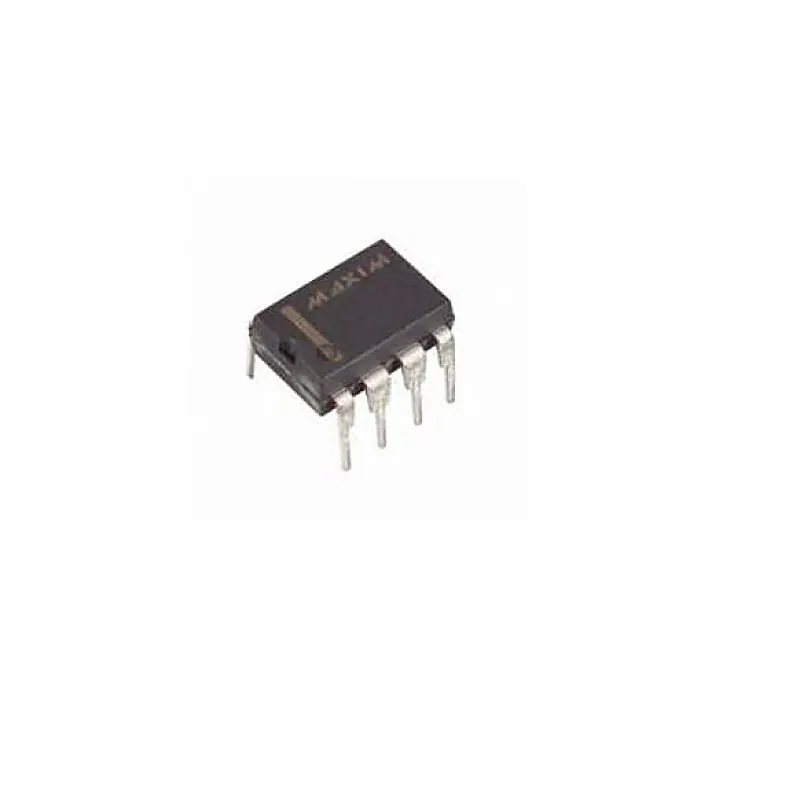

MAX488 RS-485/RS-422 Line Driver/Receiver IC DIP-8 Package

The MAX488 has reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, thus allowing error-free data transmission up to 250kbps. Drivers are short-circuit current limited and are protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high-impedance state. The receiver input has a fail-safe feature that guarantees a logic-high output if the input is open circuit. Full-duplex communications are obtained using the MAX488. Application:- Low-Power RS-485 Transceivers Low-Power RS-422 Transceivers Level Translators Transceivers for EMI-Sensitive Applications Industrial-Control Local Area Networks Specification:- Parameter Value Part Number MAX488 Half/Full Duplex Full Data Rate (Mbps) 0.25 Slew-Rate Limited Yes Lowpower Shutdown No Receiver/ Driver Enable No QUIESCENT CURRENT (Μa) 120 Number Of Receivers On Bus 32 Pin Count 8 Related Document:- MAX488 IC Datasheet
