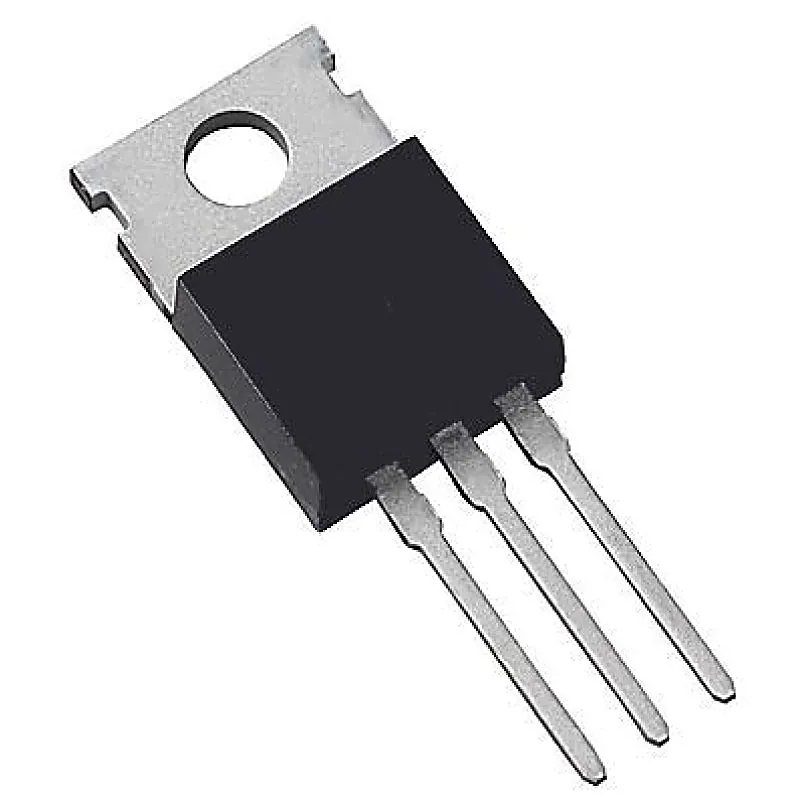

MBR20100CT 100V 20A Dual High Voltage Schottky Rectifier

The MBR20100CT series uses the Schottky Barrier principle with a platinum barrier metal. These state−of−the−art devices have the following features: • 20 A Total (10 A Per Diode Leg) • Guard−Ring for Stress Protection • Low Forward Voltage • 175°C Operating Junction Temperature • Epoxy Meets UL 94 V−0 @ 0.125 in • Low Power Loss/High Efficiency • High Surge Capacity • Low Stored Charge Majority Carrier Conduction • Shipped 50 units per plastic tube • These Devices are Pb−Free and are RoHS Compliant Mechanical Characteristics:- • Case: Epoxy, Molded • Weight: 1.9 grams (approximately) • Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable • Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds Specification:- Symbol Parameter Value Units VRRM Peak Repetitive Reverse Voltage 100 V VR Maximum DC Reverse Voltage 100 V IF(AV) Maximum Average Forward Rectified Current 10 (Per Leg), 20 (Per Device) A IFSM Non-Repetitive Peak Forward Surge Current 150 A TJ Operating Junction Temperature Range -55 to 150 °C Tstg Storage Temperature Range -55 to 150 °C Related Document:- MBR20100CT Rectifier Data Sheet
