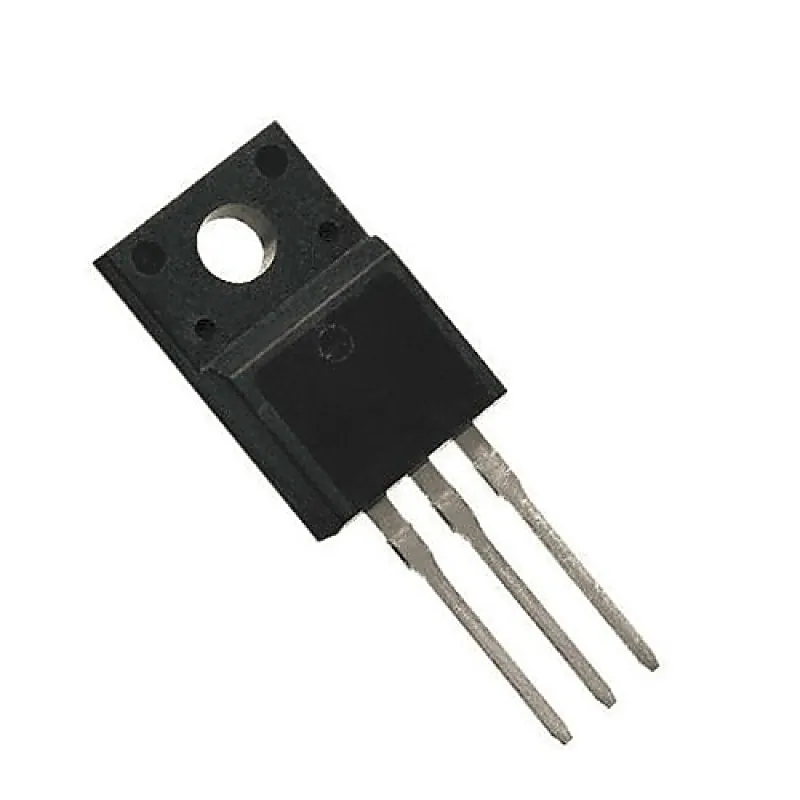

MBR20200CT 200V 20A Schottky Rectifier - Plastic Package

The MRB20200CT using Schottky Barrier technology with a platinum barrier metal. This state–of–the–art device is designed for use in high frequency switching power supplies and converters with up to 48 volt outputs. They block up to 200 volts and offer improved Schottky performance at frequencies from 250 kHz to 5.0 MHz. 200 Volt Blocking Voltage • Low Forward Voltage Drop • Guarding for Stress Protection and High dv/dt Capability (10,000 V/µs) • Dual Diode Construction – Terminals 1 and 3 Must be Connected for Parallel Operation at Full Rating Mechanical Characteristics:- • Case: Epoxy, Molded • Weight: 1.9 grams (approximately) • Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable • Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds • Shipped 50 units per plastic tube • Marking: B20200 Specification:- Symbol Parameter Value Units VRRM Peak Repetitive Reverse Voltage 200 V VRWM Working Peak Reverse Voltage 200 V VR DC Blocking Voltage 200 V IFSM Non-Repetitive Peak Forward Surge Current 150 A TJ Operating Junction Temperature Range − 65 to +175 °C Tstg Storage Temperature Range − 65 to +150 °C IF(AV) Maximum Average Forward Rectified Current 10, 20 A Related Document:- MBR20200CT Rectifier Data Sheet
